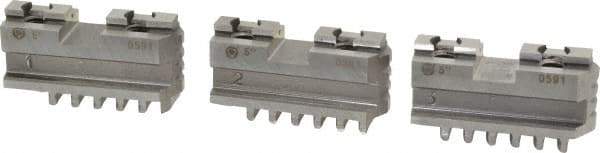

Bison - 5" Max Chuck Diam Compatibility, Steel Tongue & Groove Hard Lathe Master Jaws - 1/2" Groove Width, 0.7874" Wide x 2-1/8" Long
Item #: 08579054
Brand: Bison
Model #: 7-885-305
Exact Tooling IR#: 04
Features and Benefits
Master jaws, also known as base jaws, are attched to the scroll within the chuck body. Top jaws are attached to them and they hold the workpiece.
| Product Specifications | |
|---|---|
| Jaw Type | Master Jaws |
| Jaw Interface Type | Tongue & Groove |
| Maximum Compatible Chuck Diameter (Inch) | 5 |
| Maximum Compatible Chuck Diameter (Decimal Inch) | 5.00 |
| Material | Steel |
| Overall Width/Diameter (Decimal Inch) | 0.7874 |
| Overall Length (Decimal Inch) | 2.1259 |
| Minimum Compatible Chuck Diameter (Inch) | 5 |
| Groove Width (Decimal Inch) | 0.4996 |
| Number of Jaws | 3 |
| Fastener Size (Inch) | 5/16-18 |
| Distance Between Mount Hole Centers (Inch) | 1-1/4 |
