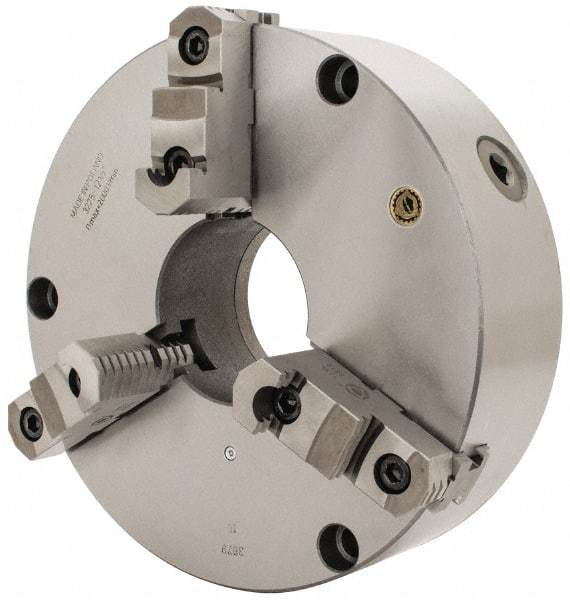

Bison - 3 Jaws, 12" Diam, Self Centering Manual Lathe Chuck - Front Mount, Reversible, 4.0551" Through Hole Diam, Cast Iron
Item #: 08574824
Brand: Bison
Model #: 7-812-1200
Exact Tooling IR#: 04
Features and Benefits
Self-centering scroll chucks are designed with jaws on a scroll which open and close with a wrench that is turned on a pinion. They accurately self-center on the workpiece as the jaws close.
Cast iron also called semi-steel is the industry standard for chuck body material.
| Product Specifications | |
|---|---|
| Chuck Type | Self-Centering |
| Nominal Chuck Size | 12 |
| Number of Jaws | 3 |
| Mount | Front Mount |
| Through-Hole Diameter (Decimal Inch) | 4.0551 |
| Body Material | Cast Iron (Semi-Steel) |
| Reversible Jaws | Reversible Jaws |
| Number of Jaw Pieces | Two-Piece |
| Chuck Diameter (Inch) | 12-1/2 |
| Minimum Jaw Capacity (Decimal Inch) | 0.3940 |
| Maximum Jaw Capacity (Decimal Inch) | 10.4300 |
| Adjustable | No |
| Body Length (Decimal Inch) | 3.7010 |
| Includes | Two-Piece Reversible Jaws |
