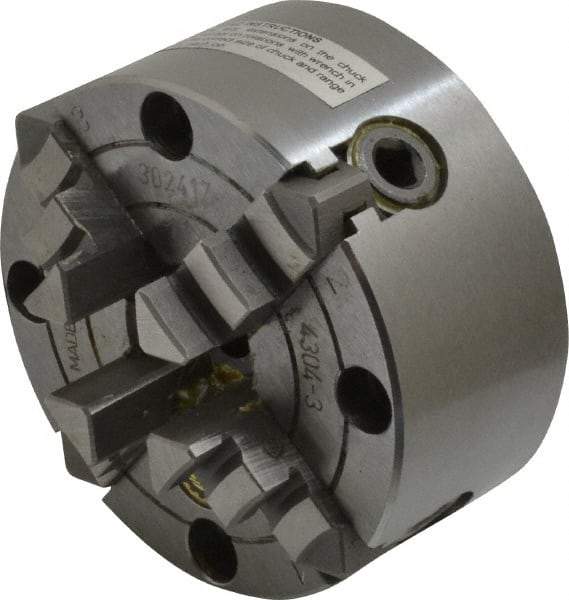

Bison - 4 Jaws, 3" Diam, Independent Manual Lathe Chuck - Plain Back Mount Spindle, Reversible, 4,000 Max RPM, 63/64" Through Hole Diam, Cast Iron
Item #: 08560047
Brand: Bison
Model #: 7-850-0300
Exact Tooling IR#: 04
Features and Benefits
Independent chucks are designed with jaws that move independantly of one another.
Cast iron also called semi-steel is the industry standard for chuck body material.
| Product Specifications | |
|---|---|
| Chuck Type | Independent |
| Nominal Chuck Size | 3 |
| Number of Jaws | 4 |
| Mount | Plain Back |
| Through-Hole Diameter (Decimal Inch) | 0.9843 |
| Body Material | Cast Iron (Semi-Steel) |
| Reversible Jaws | Reversible Jaws |
| Number of Jaw Pieces | One-Piece |
| Chuck Diameter (Inch) | 3-1/2 |
| Jaw Height (Decimal Inch) | 0.6693 |
| Adjustable | No |
| Body Length (Decimal Inch) | 1.5748 |
| Overall Length (Decimal Inch) | 2.2441 |
| Maximum RPM | 4000 |
| Includes | Set of Clamping Bolts; Set of Hard Solid Reversible Jaws; Wrench |
