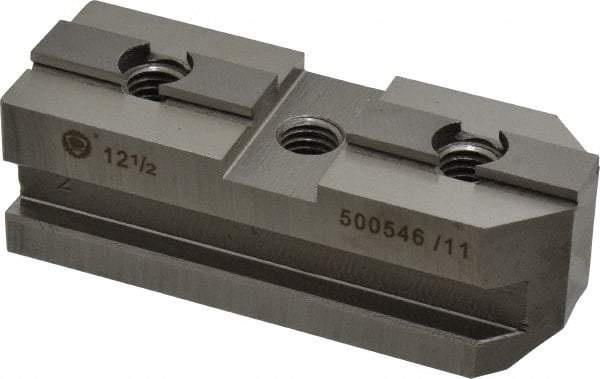

Bison - 12 to 12-1/2" Chuck Diam Compatibility, Steel Tongue & Groove Hard Lathe Master Jaws - 3/4" Groove Width, 1.5748" Wide x 4.3307" Long x 1.5354" High
Item #: 08553745
Brand: Bison
Model #: 7-890-312
Exact Tooling IR#: 04
Features and Benefits
Master jaws, also known as base jaws, are attched to the scroll within the chuck body. Top jaws are attached to them and they hold the workpiece.
| Product Specifications | |
|---|---|
| Jaw Type | Master Jaws |
| Jaw Interface Type | Tongue & Groove |
| Maximum Compatible Chuck Diameter (Inch) | 12-1/2 |
| Maximum Compatible Chuck Diameter (Decimal Inch) | 12.50 |
| Material | Steel |
| Overall Width/Diameter (Decimal Inch) | 1.5748 |
| Overall Length (Decimal Inch) | 4.3307 |
| Minimum Compatible Chuck Diameter (Inch) | 12 |
| Groove Width (Decimal Inch) | 0.7496 |
| Number of Jaws | 4 |
| Overall Height (Decimal Inch) | 1.5354 |
| Fastener Size (Inch) | 1/2-13 |
| Distance Between Mount Hole Centers (Decimal Inch) | 1.2500 |
