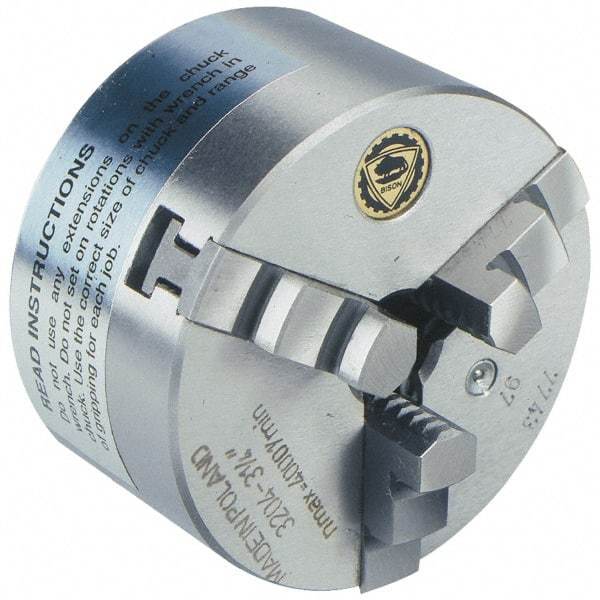

Bison - 3 Jaws, 3" Diam, Self Centering Manual Lathe Chuck - Plain Back Mount Spindle, 4,000 Max RPM, 0.6299" Through Hole Diam, 0.0006" Axial Runout, 0.0008" Radial Runout, Cast Iron
Item #: 08550030
Brand: Bison
Model #: 7-810-0300
Exact Tooling IR#: 04
Features and Benefits
Self-centering scroll chucks are designed with jaws on a scroll which open and close with a wrench that is turned on a pinion. They accurately self-center on the workpiece as the jaws close.
Cast iron also called semi-steel is the industry standard for chuck body material.
| Product Specifications | |
|---|---|
| Chuck Type | Self-Centering |
| Nominal Chuck Size | 3 |
| Number of Jaws | 3 |
| Mount | Plain Back |
| Through-Hole Diameter (Decimal Inch) | 0.6299 |
| Body Material | Cast Iron (Semi-Steel) |
| Reversible Jaws | Nonreversible Jaws |
| Number of Jaw Pieces | One-Piece |
| Chuck Diameter (Inch) | 3-1/2 |
| Adjustable | No |
| Axial Runout (Decimal Inch) | 0.0006 |
| Radial Runout (Decimal Inch) | 0.0008 |
| Body Length (Decimal Inch) | 1.7320 |
| Maximum RPM | 4000 |
| Includes | (2) Hex Keys; Chuck Wrench; Eye Bolts (Chuck Size 15-3/4" & Larger); Set of Hard Solid External Jaws; Set of Hard Solid Internal Jaws; Set of Mounting Bolts |
