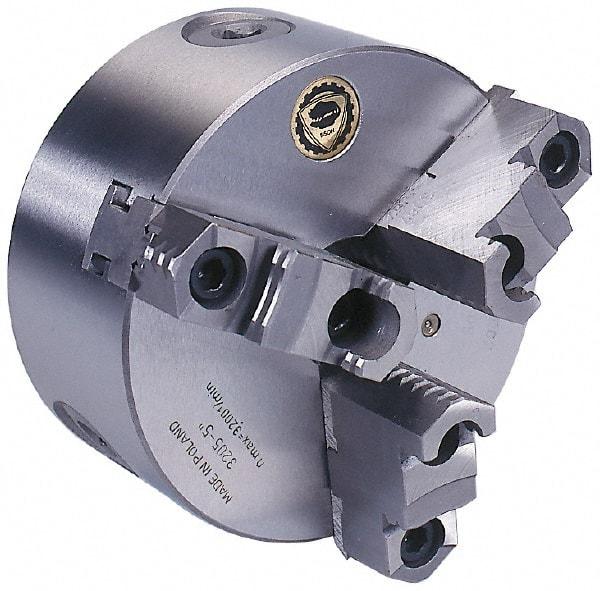

Bison - 3 Jaws, 16" Diam, Self Centering Manual Lathe Chuck - A1-11 Mount Spindle, Reversible, 5.19" Through Hole Diam, 0.0012" Axial Runout, 0.0024" Radial Runout, Forged Steel
Item #: 08547796
Brand: Bison
Model #: 7-821-1629
Exact Tooling IR#: 04
Features and Benefits
Self-centering scroll chucks are designed with jaws on a scroll which open and close with a wrench that is turned on a pinion. They accurately self-center on the workpiece as the jaws close.
Forged steel or steel chucks have greater accuracy, less wear and can be operated at higher RPM's.
| Product Specifications | |
|---|---|
| Chuck Type | Self-Centering |
| Nominal Chuck Size | 16 |
| Number of Jaws | 3 |
| Mount | A1-11 |
| Through-Hole Diameter (Decimal Inch) | 5.1900 |
| Body Material | Forged Steel |
| Reversible Jaws | Reversible Jaws |
| Number of Jaw Pieces | Two-Piece |
| Chuck Diameter (Inch) | 16 |
| Adjustable | No |
| Axial Runout (Decimal Inch) | 0.0012 |
| Radial Runout (Decimal Inch) | 0.0024 |
| Includes | Two-Piece Hard Reversible Jaws |
