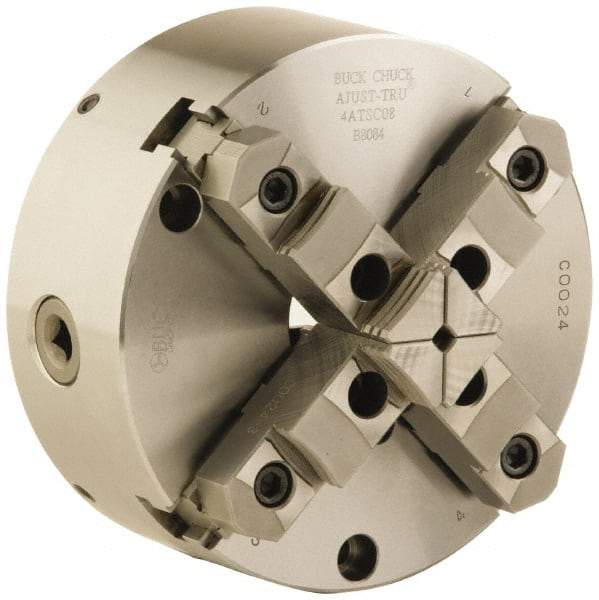

Buck Chuck Company - 4 Jaws, 6" Diam, Self Centering Manual Lathe Chuck - Front Mount, Adjustable, Reversible, 4,600 Max RPM, 1.78" Through Hole Diam, Forged Steel
Item #: 08537763
Brand: Buck Chuck Company
Model #: B8064
Exact Tooling IR#: 04
Features and Benefits
Self-centering scroll chucks are designed with jaws on a scroll which open and close with a wrench that is turned on a pinion. They accurately self-center on the workpiece as the jaws close.
Forged steel or steel chucks have greater accuracy, less wear and can be operated at higher RPM's.
| Product Specifications | |
|---|---|
| Chuck Type | Self-Centering |
| Nominal Chuck Size | 6 |
| Number of Jaws | 4 |
| Mount | Front Mount |
| Through-Hole Diameter (Decimal Inch) | 1.7800 |
| Body Material | Forged Steel |
| Reversible Jaws | Reversible Jaws |
| Number of Jaw Pieces | Two-Piece |
| Chuck Diameter (Inch) | 6 |
| Minimum Jaw Capacity (Decimal Inch) | 0.3100 (External); 2.1700 (Internal) |
| Maximum Jaw Capacity (Decimal Inch) | 5.5100 (External); 5.9100 (Internal) |
| Series | ATSC |
| Adjustable | Yes |
| Jaw Type | Master Jaws; Top Jaws |
| TIR Repeatability (Decimal Inch) | 0.0005 |
| Body Length (Decimal Inch) | 2.7600 |
| Maximum RPM | 4600 |
| Includes | Allen Wrench; Master & Hardened Top Reversible Jaws; Set of Mounting Bolts; Spring-Loaded T-Wrench |
