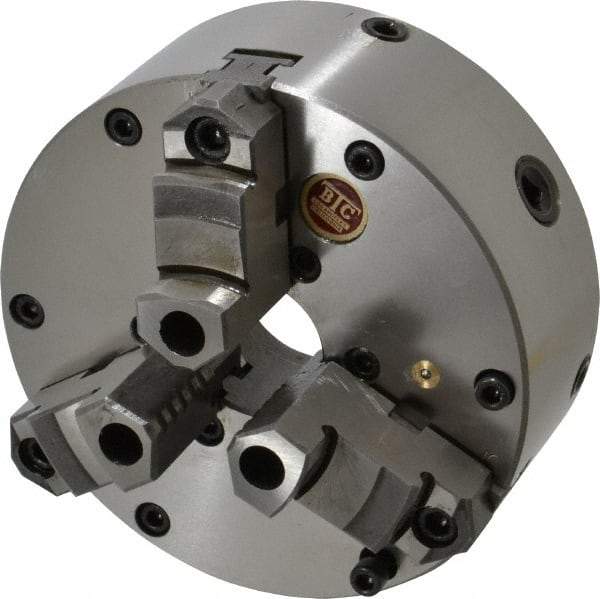

BTC - 3 Jaws, 6" Diam, Self Centering Manual Lathe Chuck - Plain Back Mount Spindle, Adjustable, Reversible, 3,400 Max RPM, 1.535" Through Hole Diam, Cast Iron
Item #: 08506008
Brand: BTC
Model #: 1063R
Exact Tooling IR#: 04
Features and Benefits
Self-centering scroll chucks are designed with jaws on a scroll which open and close with a wrench that is turned on a pinion. They accurately self-center on the workpiece as the jaws close.
Cast iron also called semi-steel is the industry standard for chuck body material.
| Product Specifications | |
|---|---|
| Chuck Type | Self-Centering |
| Nominal Chuck Size | 6 |
| Number of Jaws | 3 |
| Mount | Plain Back |
| Through-Hole Diameter (Decimal Inch) | 1.5350 |
| Body Material | Cast Iron (Semi-Steel) |
| Reversible Jaws | Reversible Jaws |
| Number of Jaw Pieces | Two-Piece |
| Chuck Diameter (Inch) | 6 |
| Minimum Jaw Capacity (Decimal Inch) | 0.1250 (External); 1.8750 (Internal) |
| Maximum Jaw Capacity (Decimal Inch) | 5.7500 (Internal); 6.0000 (External) |
| Adjustable | Yes |
| Jaw Type | Master Jaws; Top Jaws |
| TIR Repeatability (Decimal Inch) | 0.0005 |
| Body Length (Decimal Inch) | 2.3230 |
| Maximum RPM | 3400 |
| Includes | Hardened Self-Centering Chuck; Master Jaws & Top Jaws; Mounting Screws; T-Wrench |
