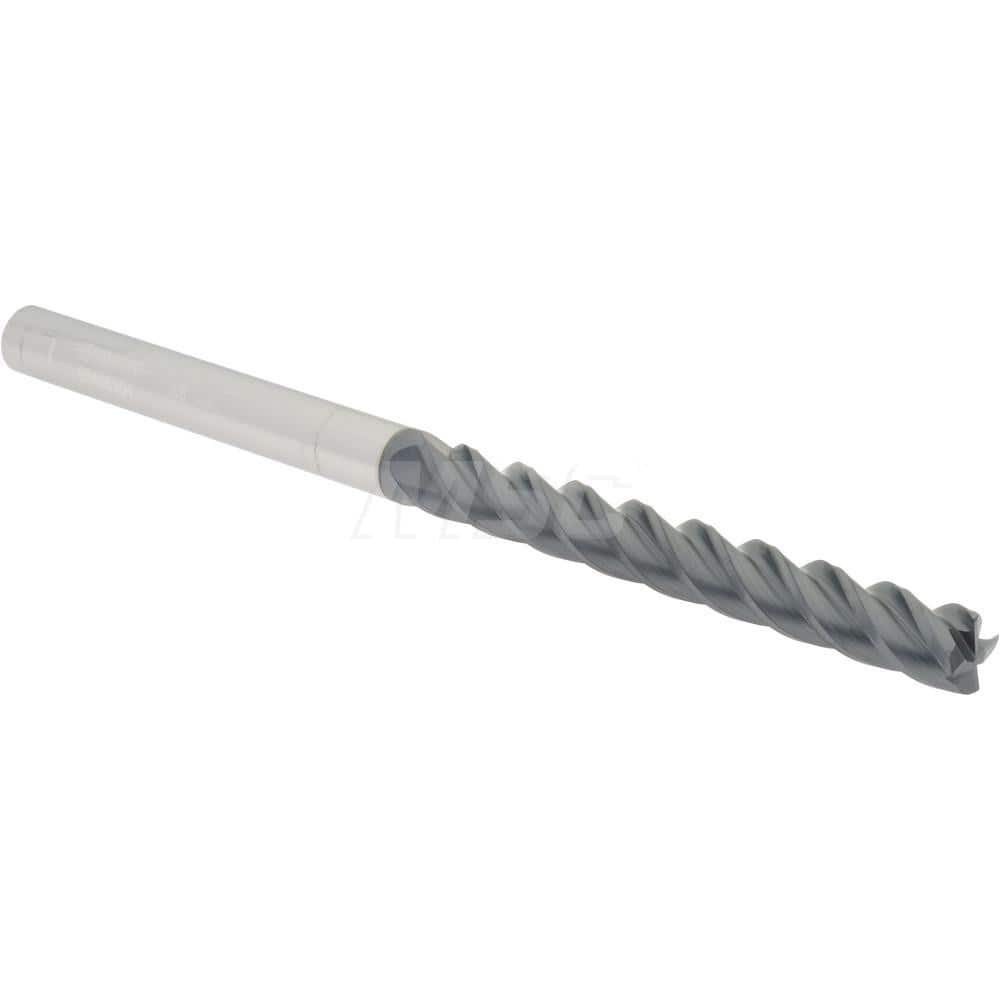

Corner Radius End Mill: 3/8″ Dia, 3″ LOC, 0.015″ Radius, 4 Flutes, Solid Carbide 6″ OAL, 3/8″ Shank Dia, 40 ° Helix, AlTiN Coated, Corner Radius End, Centercutting
Item #: 08486904
Brand: Accupro
Model #: 12183765
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3750 |
| Mill Diameter (Inch) | 3/8 |
| Length of Cut (Inch) | 3 |
| Corner Radius (Decimal Inch) | 0.0150 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Extended Reach | No |
| End Type | Corner Radius |
| Length Type | Extra Long |
| Flute Type | Spiral |
| Helix Angle | 40 |
| Centercutting | Yes |
| Variable Index | No |
| Shank Diameter (Inch) | 3/8 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Corner Radius Tolerance | ?0.00150 in |
| Mill Diameter Tolerance | +0.000000 to -0.002500 in |
| Shank Diameter Tolerance | -0.0001/-0.0004 in |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | Micrograin |
| Single Or Double End | Single |
| Coating/Finish | AlTiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 3.0000 |
