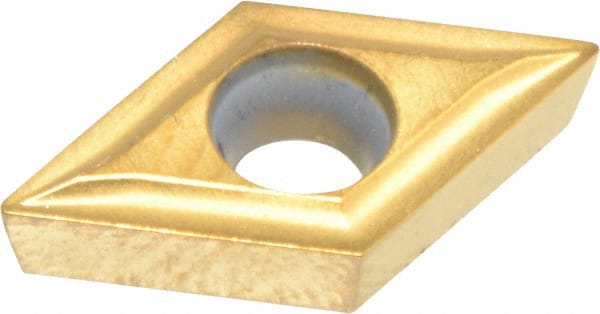

DCMT21.50.5LF KC730 Carbide Turning Insert TiN Finish, Neutral, 7.75mm Long, 1/4″ Inscribed Circle, 0.0079″ Corner Radius, 3/32″ Thick, 55° Diamond, Series Screw-On
Item #: 08441602
Brand: Kennametal
Model #: 1161925
Product Specifications
| Insert Style | DCMT |
| Insert Shape Code | D |
| Insert Size Code | 21.50.5 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | KC730 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 55.0 |
| Relief Angle | 7 |
| Series | Screw-On |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.3051 |
| Insert Length (mm) | 7.75 |
| Primary Workpiece Material | N |
| Secondary Workpiece Material | S; M |
| Material Grade | C3; C4; C2 |
| Chip Breaker | T |
| Rake Angle | 5 |
| Style | DCMT21.50.5 |
| Coating/Finish | TiN |
 | |
| MSC Part # | 08441602 |
| Mfr Part # | 1161925 |
| Big Book Page # | 770 |
