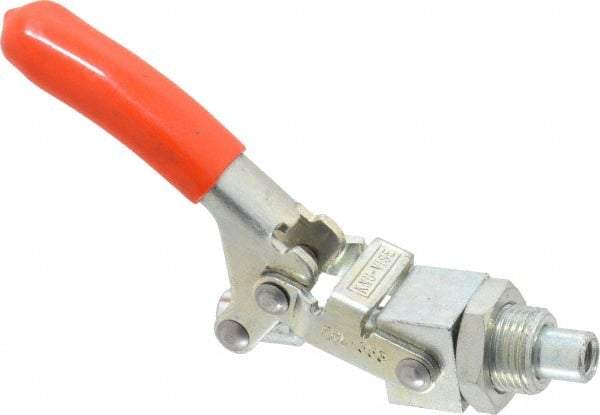

Lapeer - 350 Lb Load Capacity, Mounting Plate Base, Carbon Steel, Standard Straight Line Action Clamp - 7/16" Plunger Diam, Straight Handle
Item #: 08106767
Brand: Lapeer
Model #: PHL-353
Exact Tooling IR#: 04
Features and Benefits
Carbon steel offers strength and rigidity during an application. It does not resist corrosion as well as stainless steel.
| Product Specifications | |
|---|---|
| Load Capacity (Lb.) | 350.00 |
| Load Capacity (kg) | 158.76 |
| Plunger Travel (mm) | 38.10 |
| Plunger Travel (Decimal Inch) | 1.5000 |
| Plunger Travel (Inch) | 1-1/2 |
| Plunger Shape | Round |
| Plunger Thread Style | Internal |
| Plunger Thread Size | 5/16-18 |
| Plunger Diameter (Inch) | 7/16 |
| Plunger Diameter (Decimal Inch) | 0.4375 |
| Plunger Diameter (mm) | 11.11 |
| Base Style | Mounting Plate |
| Handle Style | Straight |
| Material | Carbon Steel |
| Overall Length (Decimal Inch) | 4.3438 |
| Overall Height (Decimal Inch) | 3.3438 |
| Handle Color | Orange |
| Overall Length (mm) | 110.33 |
| Overall Length (Inch) | 4-11/32 |
| Overall Height (Inch) | 3-11/32 |
| Overall Height (mm) | 84.93 |
| Jam Nut Height (mm) | 6.35 |
| Jam Nut Height (Inch) | 1/4 |
| Jam Nut Height (Decimal Inch) | 0.2500 |
| Jam Nut Hex Size (mm) | 25.40 |
| Jam Nut Hex Size (Decimal Inch) | 1.0000 |
| Jam Nut Hex Size (Inch) | 1 |
| Jam Nut Thread Size | 3/4-16 |
| Includes | Jam Nut |
