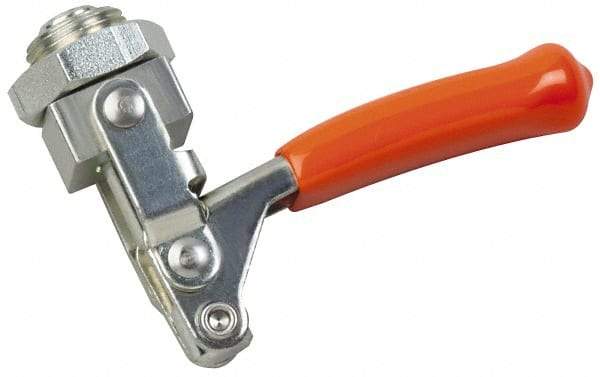

Lapeer - 250 Lb Load Capacity, Mounting Plate Base, Carbon Steel, Standard Straight Line Action Clamp - 3/8" Plunger Diam, Straight Handle
Item #: 08106759
Brand: Lapeer
Model #: PHL-253
Exact Tooling IR#: 04
Features and Benefits
Carbon steel offers strength and rigidity during an application. It does not resist corrosion as well as stainless steel.
| Product Specifications | |
|---|---|
| Load Capacity (Lb.) | 250.00 |
| Load Capacity (kg) | 113.40 |
| Plunger Travel (mm) | 19.05 |
| Plunger Travel (Decimal Inch) | 0.7500 |
| Plunger Travel (Inch) | 3/4 |
| Plunger Shape | Round |
| Plunger Thread Style | Internal |
| Plunger Thread Size | 1/4-20 |
| Plunger Diameter (Inch) | 3/8 |
| Plunger Diameter (Decimal Inch) | 0.3750 |
| Plunger Diameter (mm) | 9.53 |
| Base Style | Mounting Plate |
| Handle Style | Straight |
| Material | Carbon Steel |
| Overall Length (Decimal Inch) | 2.7500 |
| Overall Height (Decimal Inch) | 2.8750 |
| Handle Color | Orange |
| Overall Length (mm) | 69.85 |
| Overall Length (Inch) | 2-3/4 |
| Overall Height (Inch) | 2-7/8 |
| Overall Height (mm) | 73.03 |
| Jam Nut Height (mm) | 6.35 |
| Jam Nut Height (Inch) | 1/4 |
| Jam Nut Height (Decimal Inch) | 0.2500 |
| Jam Nut Hex Size (mm) | 22.23 |
| Jam Nut Hex Size (Decimal Inch) | 0.8750 |
| Jam Nut Hex Size (Inch) | 7/8 |
| Jam Nut Thread Size | 5/8-18 |
| Includes | Jam Nut |
