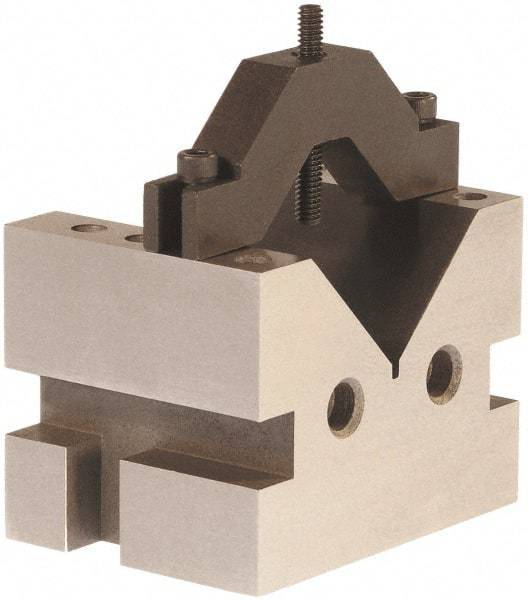

Suburban Tool - 4-3/8" Max Capacity, 90° Angle, Hardened Steel V-Block - 6" Long x 6" Wide x 4" High, Sold as Matched Pair
Item #: 08021354
Brand: Suburban Tool
Model #: VB466MS2
Exact Tooling IR#: 04
Features and Benefits
V-blocks are used for holding cylindrical components for detecting and inspecting. They are designed with a 90-degree channel rotated 45-degrees from the sides, forming a V-shaped channel in the top. V-Blocks are commonly available in pairs. Some come with magnets for magnetic workholding applications.
| Product Specifications | |
|---|---|
| Type | V-Block |
| Sold As | Matched Pair |
| Overall Length (Inch) | 6 |
| Overall Width (Inch) | 6 |
| Overall Height (Inch) | 4 |
| V Angle | 90.00 |
| Maximum Capacity of V (Inch) | 4-3/8 |
| Material | Hardened Steel |
| Squareness Per 1 Inch (Decimal Inch) | 0.0003 |
| Parallelism (Decimal Inch) | 0.0003 |
| Hardness | 58-62 Rc |
| Magnetic | No |
| Includes | Reversible Swing-Away Clamp |
