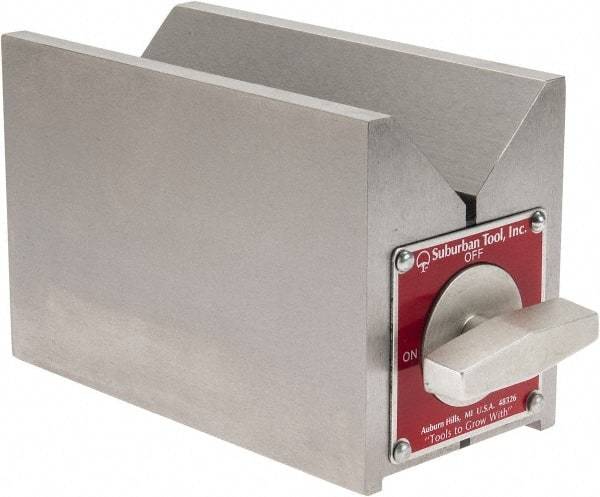

Suburban Tool - 2-3/4" Max Capacity, 90° Angle, V-Block - 5-1/2" Long x 2-3/4" Wide x 3-5/8" High, Sold as Individual
Item #: 08021065
Brand: Suburban Tool
Model #: MTCVB
Exact Tooling IR#: 04
Features and Benefits
V-blocks are used for holding cylindrical components for detecting and inspecting. They are designed with a 90-degree channel rotated 45-degrees from the sides, forming a V-shaped channel in the top. V-Blocks are commonly available in pairs. Some come with magnets for magnetic workholding applications.
| Product Specifications | |
|---|---|
| Type | V-Block |
| Sold As | Individual |
| Overall Length (Inch) | 5-1/2 |
| Overall Width (Inch) | 2-3/4 |
| Overall Height (Inch) | 3-5/8 |
| V Angle | 90.00 |
| Maximum Capacity of V (Inch) | 2-3/4 |
| Squareness Per 1 Inch (Decimal Inch) | 0.0005 |
| Parallelism (Decimal Inch) | 0.0005 |
| Magnetic | Yes |
