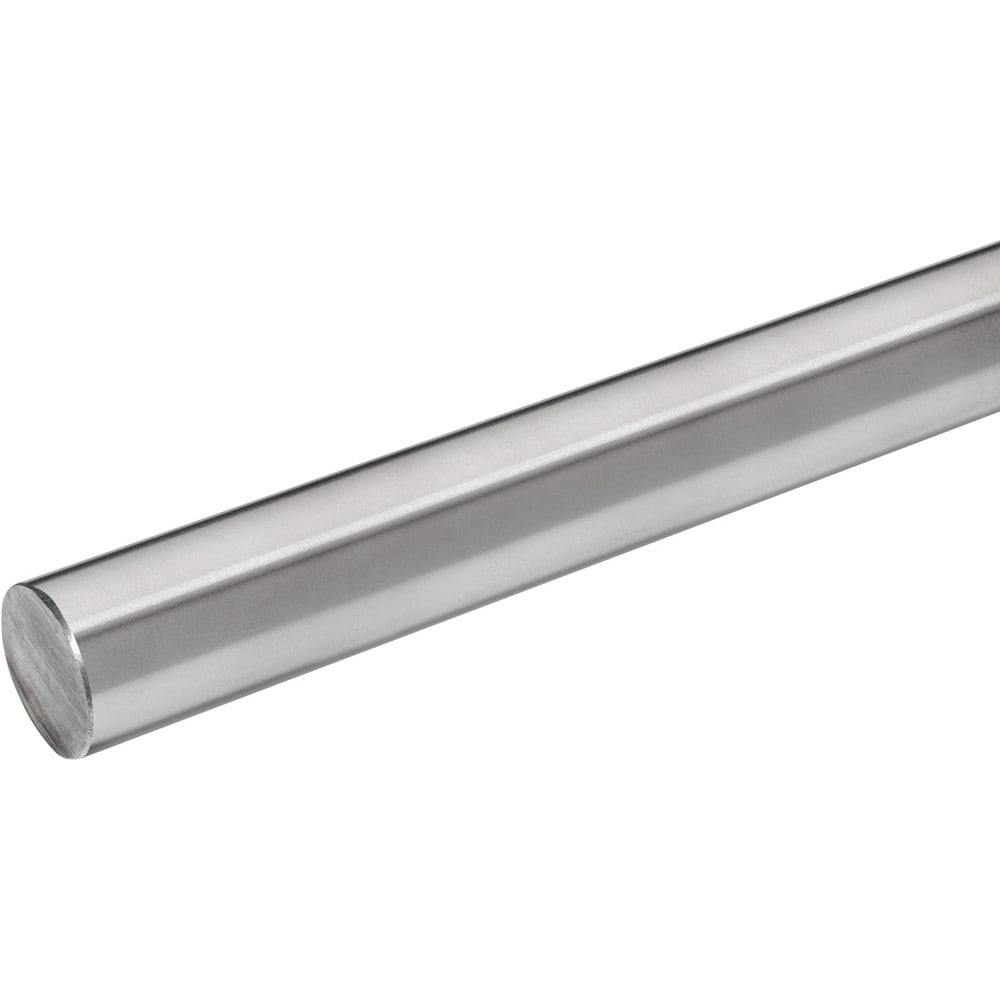

Round Linear Shafting; Shaft Type: Standard; Diameter (mm): 15.8800; Diameter (Decimal Inch): 0.6250; Diameter (Inch, Fraction): 5/8; Shaft Diameter: 15.880; Shaft Diameter: 0.6250; Material: Steel; Length (Inch): 4; Minimum Diameter Tolerance: 15.8496 mm
Item #: 78114139
Brand: USA Industrials
Model #: ZSHAFT-56
Product Specifications
| Shaft Type | Standard |
| Diameter (mm) | 15.8800 |
| Diameter (Decimal Inch) | 0.6250 |
| Diameter (Inch, Fraction) | 5/8 |
| Shaft Diameter | 15.880 |
| Shaft Diameter | 0.6250 |
| Material | Steel |
| Length (Inch) | 4 |
| Minimum Diameter Tolerance | 15.8496 mm |
| Maximum Diameter Tolerance | 15.8623 mm |
| Hardness | 60-65 HRC |
| Material Grade | 1060 |
| Tolerance | .6245/.6240 |
| UNSPSC Code | 23153030 |
| Country of Origin | Germany |
