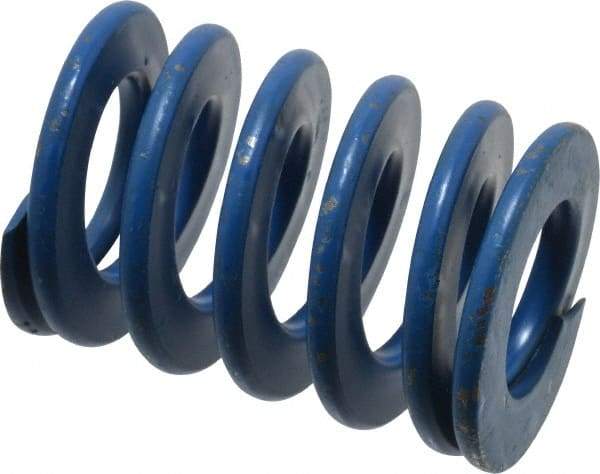

Associated Spring Raymond - 1-1/4" Hole Diam, 5/8" Rod Diam, 1-3/4" Free Length, Blue Die Spring - 371 Lb Max Deflection, 0.88" Max Deflection, Medium Duty, Chromium Alloy Steel
Item #: 07660913
Brand: Associated Spring Raymond
Model #: 103-607
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 1-1/4 |
| Rod Diameter (Inch) | 5/8 |
| Free Length (Inch) | 1-3/4 |
| Load Type | Medium-Duty |
| Color | Blue |
| Maximum Deflection Load (Lb.) | 371.00 |
| Maximum Deflection (Decimal Inch) | 0.8800 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
