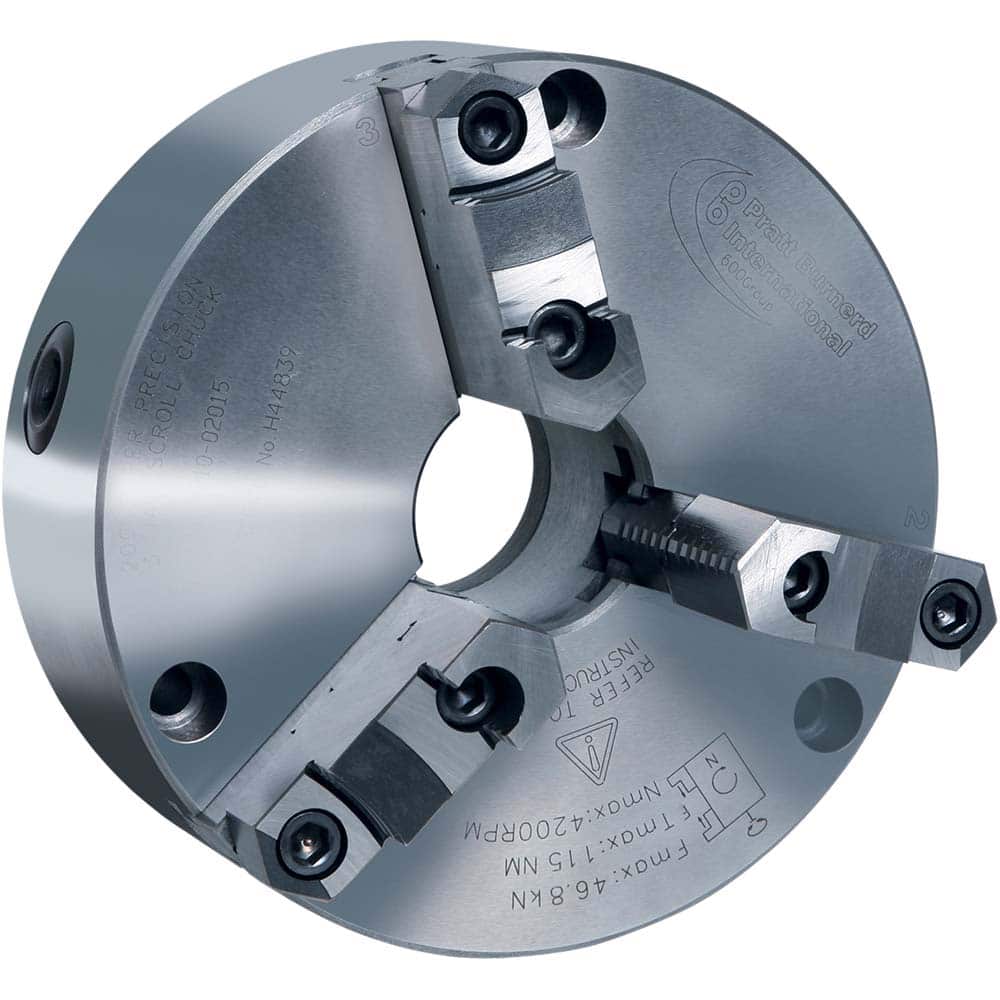

Pratt Burnerd America - Manual Lathe Chucks; Chuck Type: Self-Centering ; Nominal Chuck Size: 12 ; Number of Jaws: 3 ; Mount: Plain Back ; Through-Hole Diameter (Decimal Inch): 4.0500 ; Body Material: Forged Steel
Item #: 07559248
Brand: Pratt Burnerd America
Model #: 1223500
Product Specifications
Manual Lathe Chucks; Chuck Type: Self-Centering ; Nominal Chuck Size: 12 ; Number of Jaws: 3 ; Mount: Plain Back ; Through-Hole Diameter (Decimal Inch): 4.0500 ; Body Material: Forged Steel
| Chuck Type | Self-Centering |
| Nominal Chuck Size | 12 |
| Number of Jaws | 3 |
| Mount | Plain Back |
| Through-Hole Diameter (Decimal Inch) | 4.0500 |
| Body Material | Forged Steel |
| Reversible Jaws | Nonreversible Jaws |
| Number of Jaw Pieces | Two-Piece |
| Chuck Diameter (Decimal Inch) | 12.2000 |
| Minimum Jaw Capacity (Inch) | 0.7500; 3/4 |
| Minimum Jaw Capacity (Decimal Inch) | 0.7500; 3/4 |
| Maximum Jaw Capacity (Inch) | 10.0000; 10 |
| Maximum Jaw Capacity (Decimal Inch) | 10.0000; 10 |
| Series | 235 |
| Jaw Height (Decimal Inch) | 2.2800 |
| Adjustable | Yes |
| Jaw Type | Tongue & Groove Jaws |
| Radial Runout (Decimal Inch) | 0.0015 |
| TIR Repeatability (Decimal Inch) | 0.0005 |
| Body Length (Decimal Inch) | 3.5600 |
| Maximum RPM | 2200 |
| Includes | Mounting Plate |
