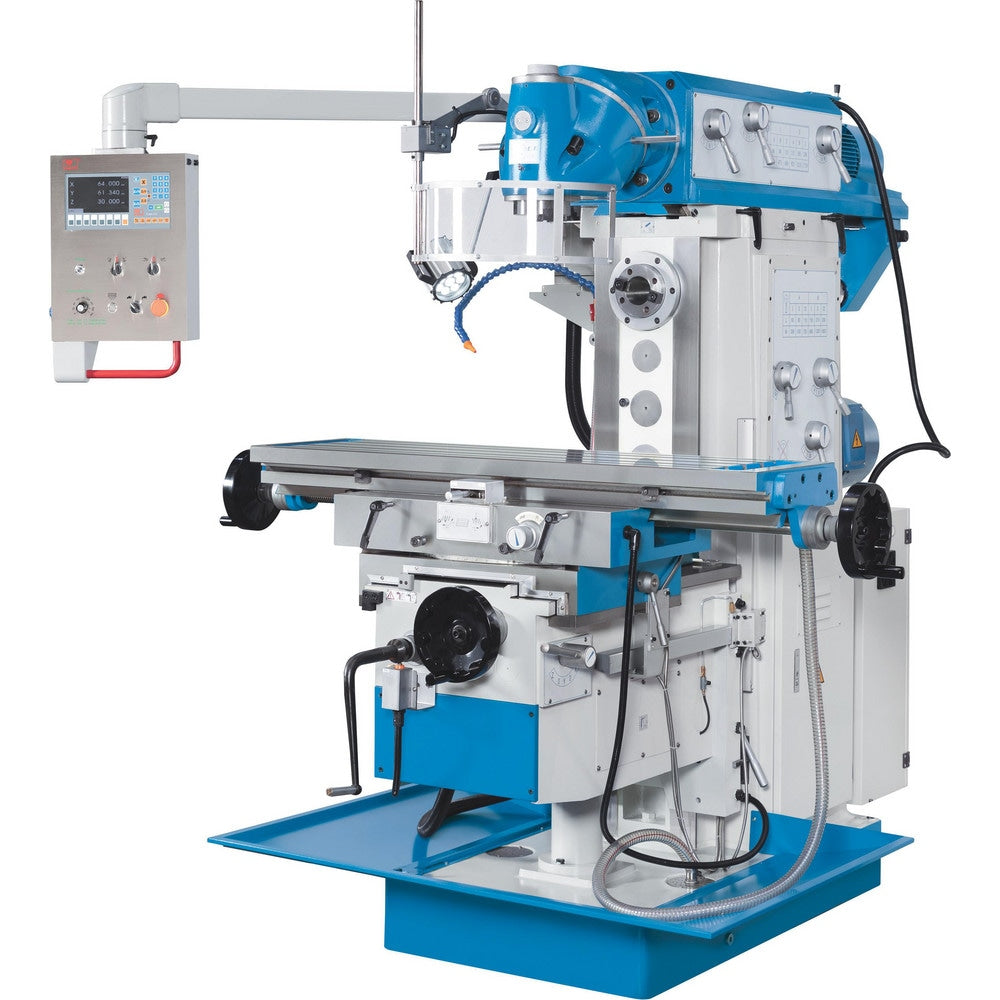

Knee Milling Machines; Minimum Spindle to Column Distance (Decimal Inch): 2.000; Minimum Spindle to Column Distance (Inch): 2; Minimum Spindle to Column Distance (mm): 50.80; Minimum Spindle to Table Distance (Decimal Inch): 7.0000; Minimum Spindle to Tab
Item #: 87999710
Brand: Knuth
Model #: 362750
Product Specifications
| Minimum Spindle to Column Distance (Decimal Inch) | 2.000 |
| Minimum Spindle to Column Distance (Inch) | 2 |
| Minimum Spindle to Column Distance (mm) | 50.80 |
| Minimum Spindle to Table Distance (Decimal Inch) | 7.0000 |
| Minimum Spindle to Table Distance (Inch) | 7 |
| Minimum Spindle to Table Distance (mm) | 177.80 |
| Maximum Spindle to Table Distance (Inch) | 22.0000 |
| Maximum Spindle to Table Distance (mm) | 558.80 |
| Maximum Spindle to Table Distance (Decimal Inch) | 22.0000 |
| Minimum Spindle Speed | 60 |
| Table Length (Inch) | 52 |
| Table Width (Inch) | 14 |
| Maximum Spindle Speed | 1750 |
| Phase | Three |
| Left-Hand Head Tilt (Degrees) | 180.00 |
| Left-hand Head Tilt | 180 |
| Right-Hand Head Tilt (Degrees) | 180.00 |
| Right-hand Head Tilt | 180 |
| Cross Travel (Decimal Inch) | 11.0000 |
| Cross Travel | 11 |
| Longitudinal Travel | 29.5 |
| Longitudinal Travel (Decimal Inch) | 29.5000 |
| Knee Travel (Decimal Inch) | 15.0000 |
| Knee Travel | 15 |
| Horsepower | 7.4000 |
| Voltage | 230V |
| Table Load Capacity (kg) | 2420.00 |
| Table Load Capacity (Lb.) | 1100.00 |
| Ram Turret Swivel (Degrees) | 360.00 |
| Ram Travel Length (Decimal Inch) | 22.0000 |
| Ram Travel Length (mm) | 558.80 |
| Ram Travel Length (Inch) | 22 |
| Spindle Speed Control | Geared Head |
| Spindle Taper Size | ISO 50 |
| Spindle Travel Length (mm) | 69.85 |
| Spindle Travel Length (Decimal Inch) | 2.7500 |
| Spindle Travel Length (Inch) | 2.75 |
| Number Of T-slots | 3 |
| Number of Spindle Speeds | 12 |
| Overall Height (Decimal Inch) | 79.0000 |
| Overall Height (Mm - 5 Decimals) | 2006.60000 |
| Overall Height (Inch) | 79 |
| Overall Length (Inch) | 71 |
| Overall Length (Decimal Inch) | 71.0000 |
| Overall Length (mm) | 1803.4000 |
| UNSPSC Code | 23242503 |
| Overall Depth (Decimal Inch) | 71.0000 |
| Overall Depth (Inch) | 71 |
| Overall Depth (Mm) | 71 |
| Includes | Chip Tray; Operating Tools And Instruction.; Reducing Sleeve ISO50/MT4; Outer Arbor Support For Horizontal Milling; 3 Axis Position Indicator; Work Light; Coolant System; Collet Chuck ISO50 Including Collets 3-25mm (8pc); Draw Bar |
| Maximum Spindle To Column Distance (mm) | 22.00 |
| Maximum Spindle To Column Distance (Decimal Inch) | 22.00 |
| Maximum Spindle To Column Distance (Inch) | 22 |
| Warranty | 1 Year Parts & Labor |
| Country of Origin | China |
