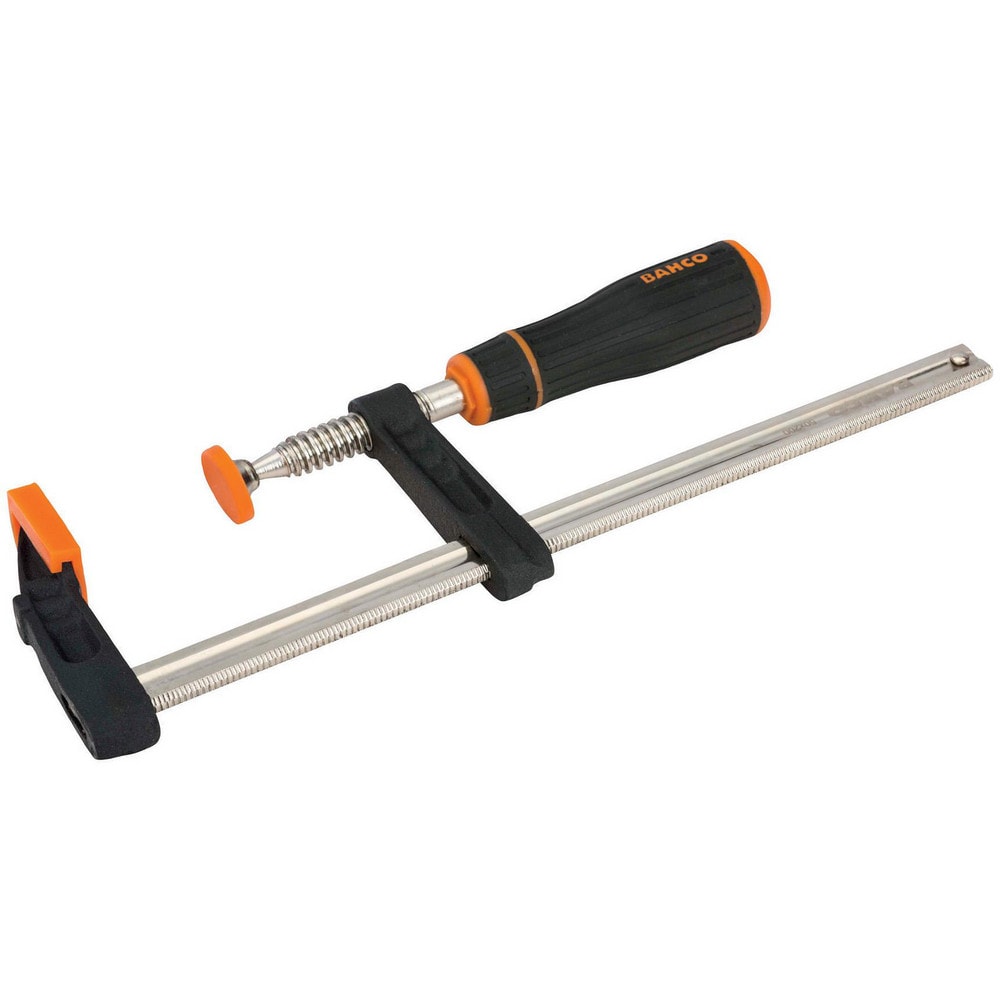

Sliding Arm Bar Clamp: 7.8740" Max Capacity, 1.9685" Throat Depth
Item #: 74947466
Brand: Bahco
Model #: BAHSH50200
Product Specifications
| Clamp Type | Heavy-Duty F-Clamp |
| Maximum Capacity (Inch) | 7.8740 |
| Maximum Capacity (cm) | 20.00 |
| Handle Style | Straight Handle |
| Throat Depth (Decimal Inch) | 1.9685 |
| Throat Depth (cm) | 5.00 |
| Throat Depth (Inch) | 1-31/32 |
| Clamping Pressure | 25500 |
| Rail Size (Inch) | 17/32 x 1/4 |
| Rail Length (Inch) | 8 |
| Arm Width | 5 |
| Arm Thickness | 15 |
| Pad Type | Heavy-Duty |
| Clamping Surface Width | 50 |
| Pad Material | Steel |
| Spindle Material | Steel |
| Frame Material | Steel |
| Spindle Diameter (Decimal Inch) | 0.7500 |
| Finish | Zinc |
| Handle Length | 180 |
| Includes | plastic caps for protection of clamped pieces |
| Series | 420SH |
| UNSPSC Code | 27112100 |
| Clamp Type | Heavy-Duty F-Clamp |
| Maximum Capacity (Inch) | 7.8740 |
| Maximum Capacity (cm) | 20.00 |
| Handle Style | Straight Handle |
| Throat Depth (Decimal Inch) | 1.9685 |
| Throat Depth (cm) | 5.00 |
| Throat Depth (Inch) | 1-31/32 |
| Clamping Pressure | 25500 |
| Rail Size (Inch) | 17/32 x 1/4 |
| Rail Length (Inch) | 8 |
| Arm Width | 5 |
| Arm Thickness | 15 |
| Pad Type | Heavy-Duty |
| Clamping Surface Width | 50 |
| Pad Material | Steel |
| Spindle Material | Steel |
| Frame Material | Steel |
| Spindle Diameter (Decimal Inch) | 0.7500 |
| Finish | Zinc |
| Handle Length | 180 |
| Includes | plastic caps for protection of clamped pieces |
| Series | 420SH |
| UNSPSC Code | 27112100 |
| MSC Part # | 74947466 |
| Mfr Part # | BAHSH50200 |
| Country of Origin Country of Origin is subject to change | China |
