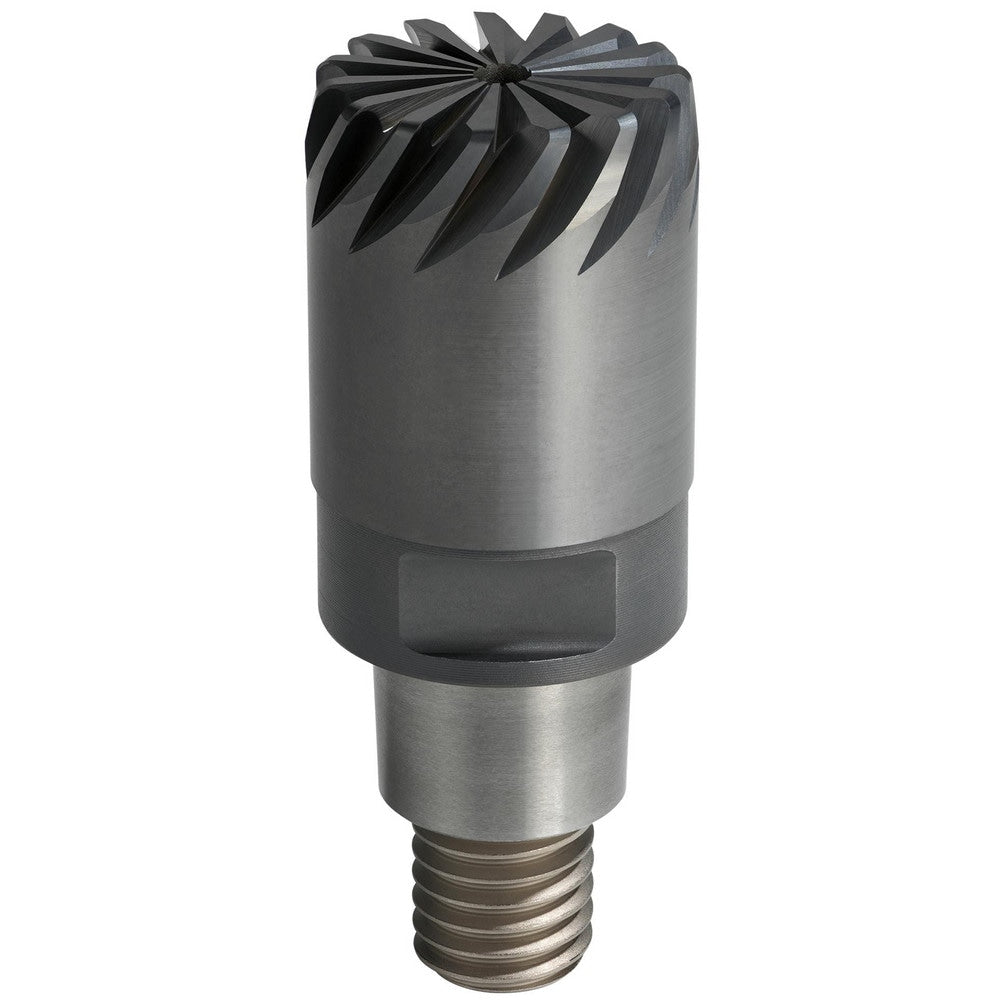

Corner Radius & Corner Chamfer End Mill Heads; Mill Diameter (mm): 8.00; Length of Cut (mm): 7.1200; Number Of Flutes: 8
Item #: 67267179
Brand: Mitsubishi
Model #: 10520833
Product Specifications
| Mill Diameter (mm) | 8.00 |
| Length of Cut (mm) | 7.1200 |
| Number Of Flutes | 8 |
| Overall Length (mm) | 29.1000 |
| Corner Radius (mm) | 1.00 |
| Coating/Finish | AlCrN |
| End Mill Material | Carbide |
| Corner Radius (Decimal Inch) | 0.0394 |
| Overall Length (Decimal Inch) | 1.1457 |
| Mill Diameter (Decimal Inch) | 0.3150 |
| Centercutting | No |
| Connection Type | iMX10 |
| Flute Type | Helical |
| Material Grade | Solid Carbide |
| Helix Angle | 35 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Coolant Through | Yes |
| Variable Helix | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2803 |
| Variable Index | No |
| UNSPSC Code | 27112803 |
| Mill Diameter (mm) | 8.00 |
| Length of Cut (mm) | 7.1200 |
| Number Of Flutes | 8 |
| Overall Length (mm) | 29.1000 |
| Corner Radius (mm) | 1.00 |
| Coating/Finish | AlCrN |
| End Mill Material | Carbide |
| Corner Radius (Decimal Inch) | 0.0394 |
| Overall Length (Decimal Inch) | 1.1457 |
| Mill Diameter (Decimal Inch) | 0.3150 |
| Centercutting | No |
| Connection Type | iMX10 |
| Flute Type | Helical |
| Material Grade | Solid Carbide |
| Helix Angle | 35 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Coolant Through | Yes |
| Variable Helix | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2803 |
| Variable Index | No |
| UNSPSC Code | 27112803 |
| MSC Part # | 67267179 |
| Mfr Part # | 10520833 |
| Country of Origin Country of Origin is subject to change | Japan |
