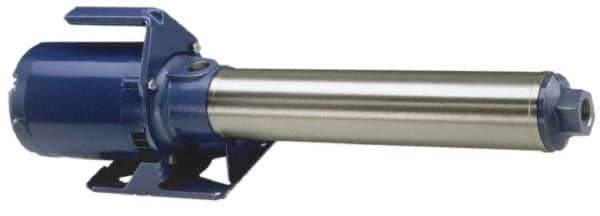

Goulds Pumps - 1 hp, 3 Phase, 230/460 Volt, High Pressure Pump, Multi Stage Booster Pump - Water Supply Booster, ODP Motor, 10 Stage
Item #: 07209869
Brand: Goulds Pumps
Model #: 10GBC1012K0
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Applications | Water Supply Booster |
| Pump Type | High Pressure |
| Stages | 10 |
| Horsepower | 1 |
| Voltage | 208- 230/460 |
| Motor Type | ODP |
| Phase | 3 |
| RPM | 3500.000 |
| GPM | 10.00 |
| Maximum Inlet Pressure (psi) | 75 |
| Maximum Working Pressure (psi) | 335.000 |
| Self Priming | No |
| Thread Type | NPT |
| Inlet Size (Inch) | 1 |
| Outlet Size (Inch) | 1 |
| Overall Height (Inch) | 7-1/2 |
| Body Length (Decimal Inch) | 25.5600 |
| Distance Between Ports (Decimal Inch) | 12.31 |
| Housing Material | Stainless Steel |
| Shaft Material | Stainless Steel |
| Seal Material | Carbon Ceramic Buna-N |
| Amperage Rating | 4.2-4.2/2.1 |
| Shut Off Feet (Feet) | 320 |
| GPM @ 40 Feet of Head | 19.000 |
| GPM @ 80 Feet of Head | 17.700 |
| GPM @ 160 Feet of Head | 15.0 |
| GPM @ 240 Feet of Head | 11.000 |
| Frame Type | 56J |
