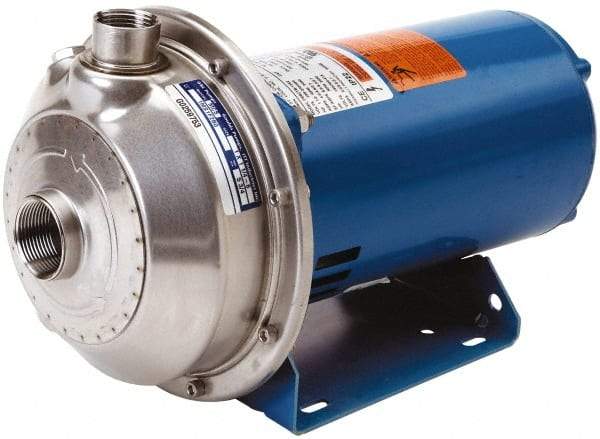

Goulds Pumps - ODP Motor, 208-230/460 Volt, 12.2/6.1 Amp, 3 Phase, 1/2 HP, 3500 RPM, 316L Stainless Steel Straight Pump - 1-1/4 Inch Inlet, 1 Inch Outlet, 32 Max Head psi, 316L Stainless Steel Impeller, Carbon Ceramic Buna Seal, 75 Ft. Shut Off
Item #: 07209497
Brand: Goulds Pumps
Model #: 1MS1C2E0
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Current Type | AC |
| Input Voltage | 208-230/460 |
| Amperage Rating | 12.2/6.1 |
| Phase | 3 |
| Horsepower | 1/2 |
| Motor Type | ODP |
| Inlet Size (Inch) | 1-1/4 |
| Outlet Size (Inch) | 1 |
| Maximum Flow Rate (GPM) | 37.00 |
| Maximum Head Pressure | 32.0 |
| Housing Material | 316L Stainless Steel |
| Impeller Material | 316L Stainless Steel |
| Shaft Material | Stainless Steel |
| Seal Material | Carbon Ceramic Buna |
| Seal Type | Mechanical |
| GPM @ 40 Feet of Head | 37.000 |
| GPM @ 50 Feet of Head | 31.000 |
| GPM @ 60 Feet of Head | 23.000 |
| GPM @ 70 Feet of Head | 13.000 |
| Shut Off Feet (Feet) | 75 |
| Frequency Hz | 60 |
| RPM | 3500.000 |
| End Connections | FPT x FPT |
