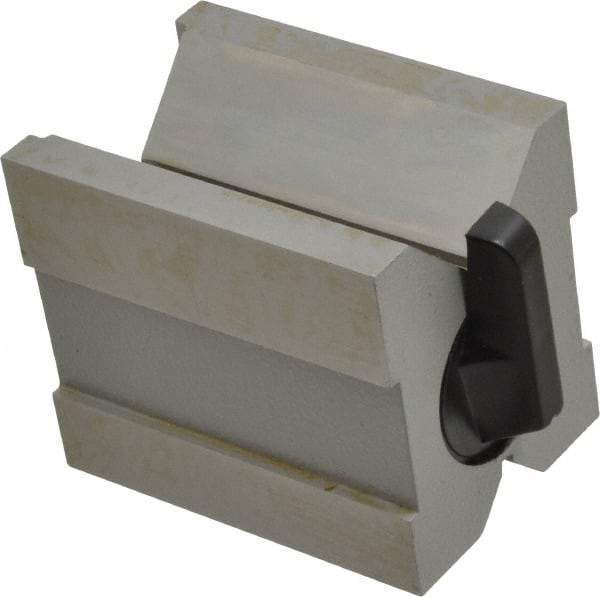

SPI - 0.19 to 1-3/4" Capacity, 90° Angle, Steel V-Block - 2-3/8" Long x 2-3/4" Wide x 2" High, Sold as Individual
Item #: 07176761
Brand: SPI
Exact Tooling IR#: 04
Features and Benefits
V-blocks are used for holding cylindrical components for detecting and inspecting. They are designed with a 90-degree channel rotated 45-degrees from the sides, forming a V-shaped channel in the top. V-Blocks are commonly available in pairs. Some come with magnets for magnetic workholding applications.
| Product Specifications | |
|---|---|
| Type | V-Block |
| Sold As | Individual |
| Overall Length (mm) | 69.85 |
| Overall Length (Inch) | 2-3/8 |
| Overall Width (mm) | 50.80 |
| Overall Width (Inch) | 2-3/4 |
| Overall Height (mm) | 60.33 |
| Overall Height (Inch) | 2 |
| V Angle | 90.00 |
| Minimum Capacity of V (Decimal Inch) | 0.1900 |
| Maximum Capacity of V (mm) | 44.45 |
| Maximum Capacity of V (Decimal Inch) | 1.7500 |
| Maximum Capacity of V (Inch) | 1-3/4 |
| Material | Steel |
| Squareness Per 1 Inch (micro m) | 10.00 |
| V Parallelism (micro m) | 10.00 |
| Magnetic | Yes |
