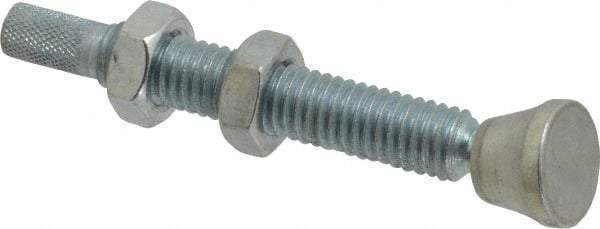

De-Sta-Co - 3/8-16 Carbon Steel Swivel Foot Tip Clamp Spindle Assembly - 48.77mm Thread Length, 77.72mm OAL, Flat Tip Cap, 0.63" Tip Surface Diam, Use with Toggle Clamps
Item #: 06993232
Brand: De-Sta-Co
Model #: 468206
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Application | Toggle Clamps |
| Spindle Material | Carbon Steel |
| Thread Size | 3/8-16 |
| Thread Length (Decimal Inch) | 1.9200 |
| Thread Length (mm) | 48.77 |
| Overall Length (mm) | 77.72 |
| Overall Length (Decimal Inch) | 3.0600 |
| Tip Type | Swivel Foot |
| Tip Surface Diameter (mm) | 16.00 |
| Tip Surface Diameter (Decimal Inch) | 0.6300 |
| Tip Cap Shape | Flat Tip |
| Swivel Angle | 24.00 |
| Tip Maximum Diameter (mm) | 16.00 |
| Tip Maximum Diameter (Decimal Inch) | 0.6300 |
| Nut Height (Decimal Inch) | 0.2300 |
| Nut Height (mm) | 5.84 |
| Includes | Jam Nuts |
