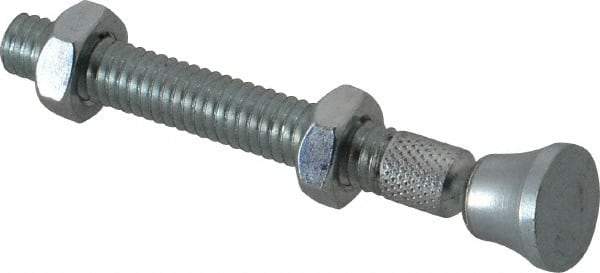

De-Sta-Co - 5/16-18 Carbon Steel Swivel Foot Tip Clamp Spindle Assembly - 49.28mm Thread Length, 69.85mm OAL, Flat Tip Cap, 0.56" Tip Surface Diam, Use with Toggle Clamps
Item #: 06993224
Brand: De-Sta-Co
Model #: 507206
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Application | Toggle Clamps |
| Spindle Material | Carbon Steel |
| Thread Size | 5/16-18 |
| Thread Length (Decimal Inch) | 1.9400 |
| Thread Length (mm) | 49.28 |
| Overall Length (mm) | 69.85 |
| Overall Length (Decimal Inch) | 2.7500 |
| Tip Type | Swivel Foot |
| Tip Surface Diameter (mm) | 14.22 |
| Tip Surface Diameter (Decimal Inch) | 0.5600 |
| Pad Material | Metal |
| Tip Cap Shape | Flat Tip |
| Swivel Angle | 24.00 |
| Tip Maximum Diameter (mm) | 14.22 |
| Tip Maximum Diameter (Decimal Inch) | 0.5600 |
| Nut Height (Decimal Inch) | 0.1900 |
| Nut Height (mm) | 4.83 |
| Includes | Jam Nuts |
