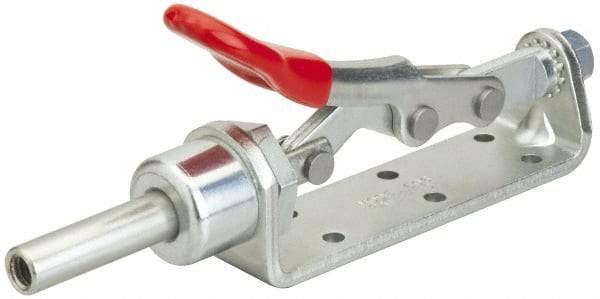

De-Sta-Co - 450 Lb Load Capacity, Flanged Base, Carbon Steel, Standard Straight Line Action Clamp - 6 Mounting Holes, 0.2" Mounting Hole Diam, 0.44" Plunger Diam, Thumb Handle
Item #: 06966360
Brand: De-Sta-Co
Model #: 606
Exact Tooling IR#: 04
Features and Benefits
Carbon steel offers strength and rigidity during an application. It does not resist corrosion as well as stainless steel.
| Product Specifications | |
|---|---|
| Load Capacity (N) | 2001.70 |
| Load Capacity (Lb.) | 450.00 |
| Plunger Travel (mm) | 39.88 |
| Plunger Travel (Decimal Inch) | 1.5700 |
| Plunger Shape | Round |
| Plunger Thread Style | Internal |
| Plunger Thread Size | 5/16-18 |
| Plunger Centerline Height (mm) | 22.35 |
| Plunger Centerline Height (Decimal Inch) | 0.8800 |
| Plunger Diameter (Decimal Inch) | 0.4400 |
| Plunger Diameter (mm) | 11.18 |
| Base Style | Flanged |
| Handle Style | Thumb |
| Material | Carbon Steel |
| Overall Length (Decimal Inch) | 6.7200 |
| Overall Height (Decimal Inch) | 2.4200 |
| Base Length (Decimal Inch) | 1.7500 |
| Base Width (Decimal Inch) | 1.1300 |
| Handle Color | Red |
| Number of Mounting Holes | 6 |
| Length Distance Between Mount Holes (mm) | 31.80 |
| Length Distance Between Mount Holes (Decimal Inch) | 1.2500 |
| Width Distance Between Mount Holes (mm) | 16.00 |
| Width Distance Between Mount Holes (Decimal Inch) | 0.6300 |
| Mounting Hole Diameter (mm) | 5.08 |
| Mounting Hole Diameter (Decimal Inch) | 0.2000 |
| Base Width (mm) | 28.70 |
| Overall Length (mm) | 170.69 |
| Overall Height (mm) | 61.47 |
