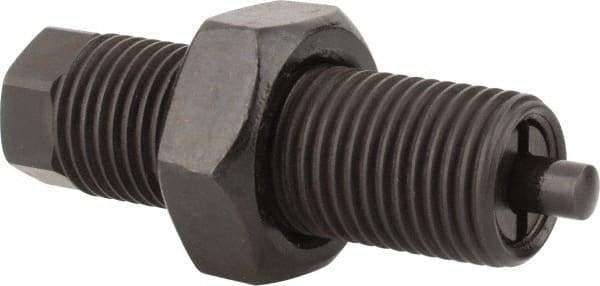

De-Sta-Co - 7/32" Stroke Len, 0.02 Cu In Volume, 0.11 Sq In Effective Piston Area, Hydraulic, Single Acting, Threaded Body Clamp Cylinder - 279 Lb at 3,000 psig Max Output, 1.41" Body Thread Len, 1.66" OAL, 0.19" Projection Len, 0.15" Projection Diam
Item #: 06964605
Brand: De-Sta-Co
Model #: 010-210-400
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Action Type | Single-Acting |
| Operating Stroke Length (Decimal Inch) | 0.2188 |
| Operating Stroke Length (Inch) | 7/32 |
| Operating Volume (Cu. In.) | 0.02 |
| Effective Piston Area (Sq. In.) | 0.11 |
| Maximum Operating Pressure (PSIG) | 5000.00 |
| Maximum Output Force (Lb.) | 279 @ 3000 psig |
| Body Thread Size | 1/2-20 |
| Body Thread Length (Decimal Inch) | 1.4100 |
| Overall Length (Decimal Inch) | 1.6600 |
| Operation Type | Hydraulic |
| Projection Length (Decimal Inch) | 0.1900 |
| Projection Diameter (Decimal Inch) | 0.1500 |
| Hex Size (Decimal Inch) | 0.0440 |
| End Port Size | SAE #2 |
| Side Port Size | 1/16 NPT |
