Turning Insert: CNMG644EN-MRS CT-P15, Carbide
Item #: 26301127
Brand: Ceratizit
Model #: 7530305809
Product Specifications
| ANSI Insert Code | CNMG644 |
| ISO Insert Code | CNMG190616 |
| Relief Angle | 0 |
| Insert Style | CNMG |
| Corner Radius (Decimal Inch) | 0.0630 |
| Included Angle | 80 |
| Manufacturer Grade | CTP15 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Series | CNMG |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Insert Material | Carbide |

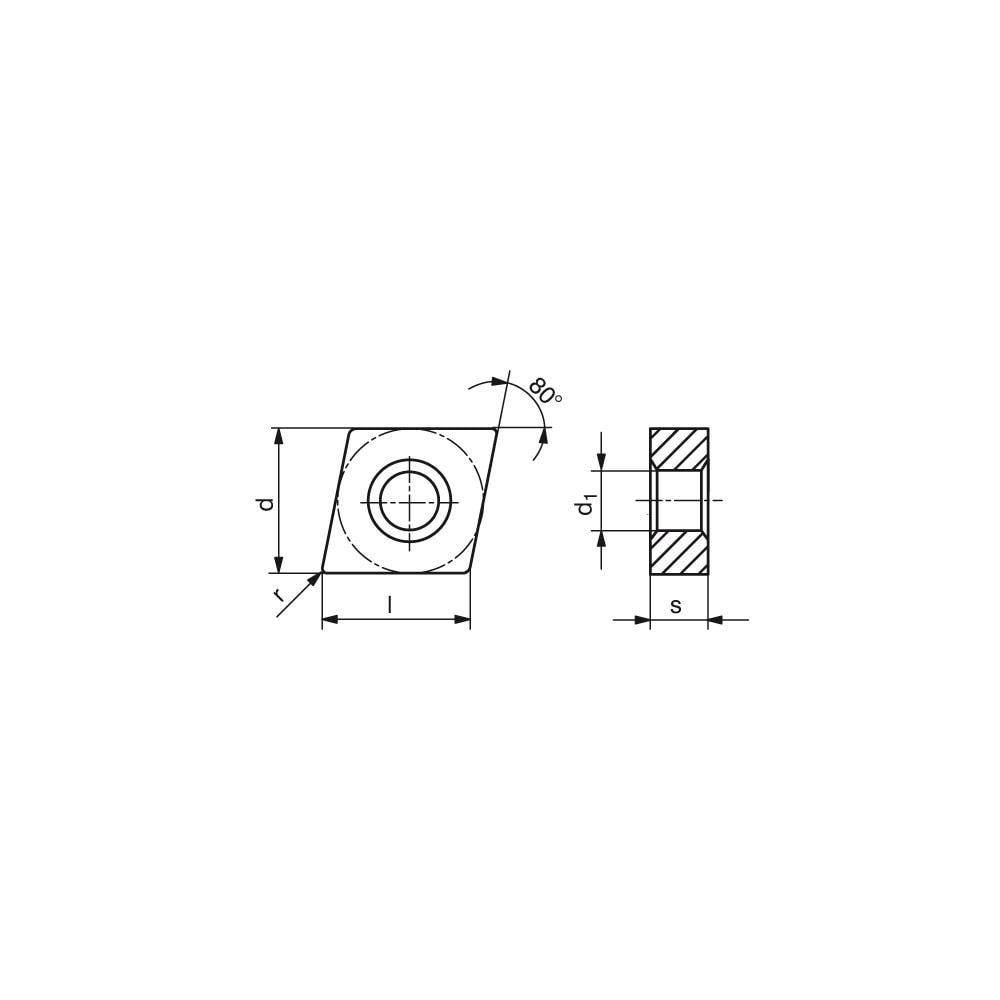

| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Side Clearance | Negative |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.3126 |
| Maximum Depth of Cut (Decimal Inch) | 0.7598 |
| Insert Holding Method | Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Negative |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Iso Code | CNMG 190616EN-MRS CT-P15 |
| Chip Breaker | MRS |
| ANSI Size Code | 644 |
| ISO Size Code | 190616 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 644 |
