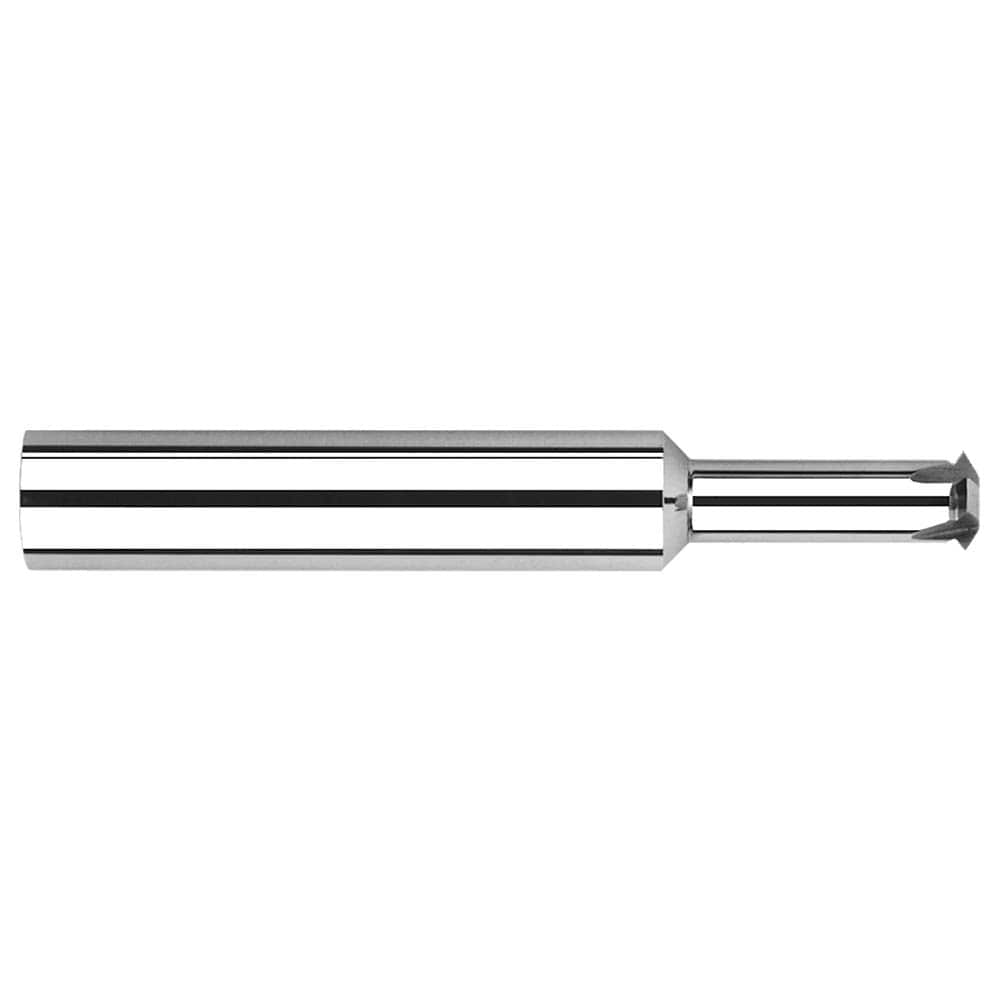

Single Profile Thread Mills; Maximum Threads Per Inch: 56; Minimum Pitch (Decimal Inch): 0.0208; Minimum Threads Per Inch: 48; Maximum Pitch (Decimal Inch): 0.0179; Material: Solid Carbide; Thread Type: Internal, External
Item #: 01935444
Brand: Harvey Tool
Model #: 821408
Product Specifications
| Maximum Threads Per Inch | 56 |
| Minimum Pitch (Decimal Inch) | 0.0208 |
| Minimum Threads Per Inch | 48 |
| Maximum Pitch (Decimal Inch) | 0.0179 |
| Material | Solid Carbide |
| Thread Type | Internal; External |
| Thread Size | #3-48 - #3-56 |
| Thread Depth (Decimal Inch) | 0.3120 |
| Shank Diameter (Inch) | 1/8 |
| Cutting Diameter (Decimal Inch) | 0.0720 |
| Minimum Nominal Diameter (Inch) | #3 |
| Overall Length (Decimal Inch) | 1.5000 |
| Overall Length (Inch) | 1-1/2 |
| Neck Diameter (Decimal Inch) | 0.0400 |
| Series | Thread Milling Cutters - Single Form - UN Threads |
| Thread Standard | UN 60 Degree |
| Number Of Flutes | 2 |
| Coating/Finish | Bright/Uncoated |
| UNSPSC Code | 23242117 |
