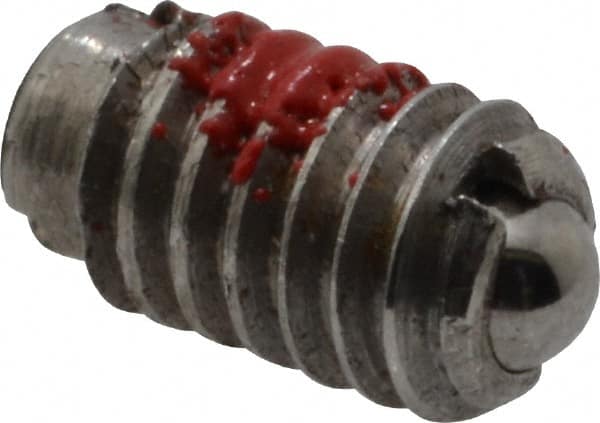

Threaded Ball Plunger: 4-48, 0.062″ Ball Dia, 3/16″ Body Length, 0.02″ Max Ball Reach 0.12 lb Initial End Force, 0.5 lb Final End Force, Stainless Steel Body, Stainless Steel Ball, Locking Element
Item #: 06862015
Brand: TE-CO
Model #: 52901
Product Specifications
| Thread Size | 4-48 |
| Thread Standard | UNF |
| Body Length | 3/16 |
| Body Material | Stainless Steel |
| Ball Material | Stainless Steel |
| Ball Diameter (Decimal Inch) | 0.0620 |
| Initial End Force (Lb.) | 0.12 |
| Final End Force (Lb.) | 0.50 |
| Locking Element | Yes |
| Finish | Plain |
| Maximum Ball Reach (Decimal Inch) | 0.0200 |
| Color Code | Purple |
