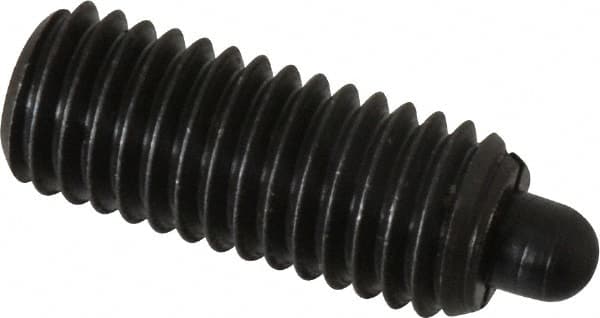

Threaded Spring Plunger: 1/2-13, 1-1/4″ Thread Length, 0.248″ Dia, 1/4″ Projection 5.5 lb Initial End Force, 14.5 lb Final End Force, Steel Body, Locking Element
Item #: 06857106
Brand: TE-CO
Model #: 52010
Product Specifications
| Plunger Length Type | Standard |
| Plunger Projection (Decimal Inch) | 0.2500 |
| Plunger Projection (Inch) | 1/4 |
| Plunger Length (Inch) | 1-1/4 |
| Initial End Force (Lb.) | 5.50 |
| Final End Force (Lb.) | 14.50 |
| Thread Size | 1/2-13 |
| Thread Length (Inch) | 1-1/4 |
| Nose Material | Steel |
| Body Material | Steel |
| Body Length | 1-1/4 |
| Maximum Plunger Diameter (Decimal Inch) | 0.2480 |
| Locking Element | Yes |
| Hex Size (Decimal Inch) | 0.1562 |
| Finish | Black |
| Tolerance (Decimal Inch) | +0.0000 |
