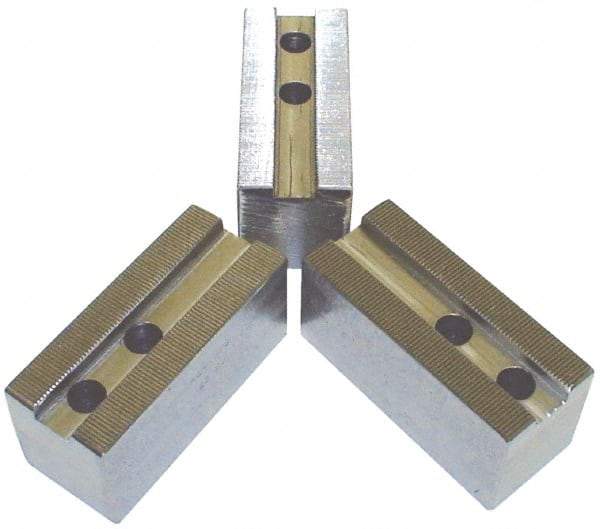

H & R Manufacturing - 18" Chuck Capacity, 3mm x 60° Serrated Attachment, Square Soft Lathe Chuck Jaw - 3 Jaws, Steel, 1.907" Btw Mount Hole Ctrs, 7" Long x 2-1/2" Wide x 2-1/2" High, 0.984" Groove, 20mm Fastener
Item #: 06828719
Brand: H & R Manufacturing
Model #: HR-203-2.5
Exact Tooling IR#: 04
Features and Benefits
Square end jaws are blanks that can be machined to final size.
| Product Specifications | |
|---|---|
| Jaw Type | Square |
| Material | Steel |
| Jaw Interface Type | 3mm x 60 Serrated |
| Maximum Compatible Chuck Diameter (Inch) | 18 |
| Minimum Compatible Chuck Diameter (Inch) | 18 |
| Overall Height (Inch) | 2-1/2 |
| Groove Width (Decimal Inch) | 0.9840 |
| Distance Between Mount Hole Centers (Decimal Inch) | 1.9070 |
| Jaw End Shape | Square |
| Fastener Size (mm) | 20.00 |
| Number of Jaws | 3 |
| Overall Width/Diameter (Inch) | 2-1/2 |
| Overall Length (Inch) | 7 |
| Material Grade | 1018 |
