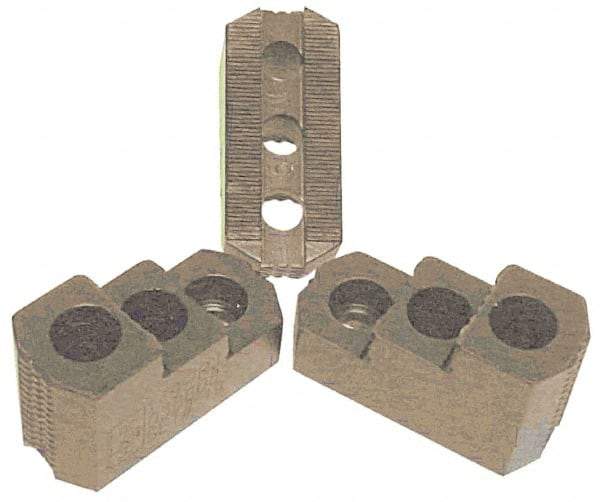

H & R Manufacturing - 15" Max Chuck Diam Compatibility, Case Hardened Steel 1.5mm x 60° Serrated Hard Lathe Top Jaws - 2 Steps, 1" Groove Width, 2-1/2" Wide x 5-1/2" Long x 3-15/32" High
Item #: 06828156
Brand: H & R Manufacturing
Model #: HR-115-RJ
Exact Tooling IR#: 04
Features and Benefits
Top jaws, also known as hard or step jaws, hold a workpiece during an operation. They are reversible and are bolted onto the master jaw.
| Product Specifications | |
|---|---|
| Jaw Type | Top Jaws |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Maximum Compatible Chuck Diameter (Inch) | 15 |
| Maximum Compatible Chuck Diameter (Decimal Inch) | 15.00 |
| Number of Steps | 2 |
| Material | Case Hardened Steel |
| Overall Width/Diameter (Inch) | 2-1/2 |
| Brand Compatibility | Kitagawa B-215 |
| Overall Length (Inch) | 5-1/2 |
| Minimum Compatible Chuck Diameter (Inch) | 15 |
| Groove Width (Decimal Inch) | 1.0000 |
| Number of Jaws | 3 |
| Overall Height (Decimal Inch) | 3.4690 |
| Fastener Size (mm) | 20.00 |
| Distance Between Mount Hole Centers (Decimal Inch) | 1.6900 |
