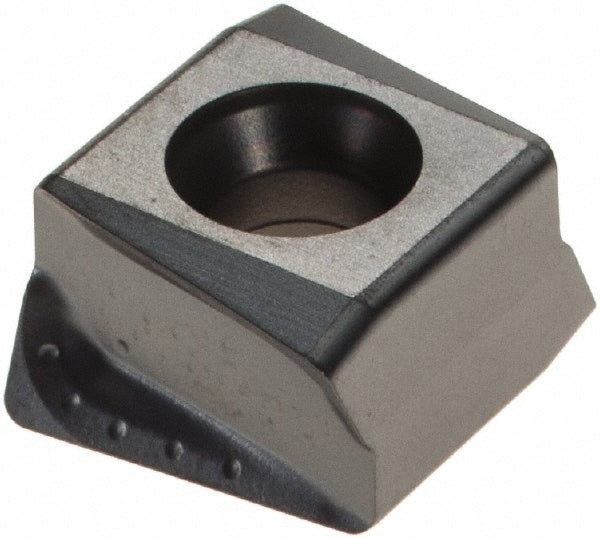

Milling Insert: LMMU110708PNER-MJ AH120 AH120, Solid Carbide
Item #: 71972715
Brand: Tungaloy
Model #: 6860067
Product Specifications
| Insert Style | LMMU |
| Insert Size | 11 |
| Insert Material | Solid Carbide |
| Insert Shape | Rectangle |
| Manufacturer Grade | AH120 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.4610 |
| Coating/Finish | TiAlN |
| Relief Angle | 0.00 |
| Insert Size Code | 110708 |
| Material Grade | M15; S10; P15; K15 |
| Inscribed Circle (Decimal Inch) | 0.2800 |
| Thickness Range (Decimal Inch) | 0.3500 to 0.5000 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.2500 to 0.3000 |
| Length Range (Decimal Inch) | 0.4000 to 0.4500 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3820 |
| Maximum Depth of Cut (mm) | 9.70 |
| Series | LMMU |
| Coating Process | PVD |
| Rake | Negative |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Ansi Code | LMMU110708PNER-MJ AH120 |
| Iso Code | LMMU110708PNER-MJ AH120 |
| Standards | ISO |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | LMMU110708PNER-MJ |
| Cutter Series Compatibility | EPM11; TPM11; 16; TLM11 |
| Chip Breaker | MJ |
| UNSPSC Code | 23291601 |
| Material Application | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.2800 |
| Multi-Use Tool | No |
| Length (Decimal Inch - 4 Decimals) | 0.4134 |
| Insert Style | LMMU |
| Insert Size | 11 |
| Insert Material | Solid Carbide |
| Insert Shape | Rectangle |
| Manufacturer Grade | AH120 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.4610 |
| Coating/Finish | TiAlN |
| Relief Angle | 0.00 |
| Insert Size Code | 110708 |
| Material Grade | M15; S10; P15; K15 |
| Inscribed Circle (Decimal Inch) | 0.2800 |
| Thickness Range (Decimal Inch) | 0.3500 to 0.5000 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.2500 to 0.3000 |
| Length Range (Decimal Inch) | 0.4000 to 0.4500 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3820 |
| Maximum Depth of Cut (mm) | 9.70 |
| Series | LMMU |
| Coating Process | PVD |
| Rake | Negative |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Ansi Code | LMMU110708PNER-MJ AH120 |
| Iso Code | LMMU110708PNER-MJ AH120 |
| Standards | ISO |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | LMMU110708PNER-MJ |
| Cutter Series Compatibility | EPM11; TPM11; 16; TLM11 |
| Chip Breaker | MJ |
| UNSPSC Code | 23291601 |
| Material Application | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.2800 |
| Multi-Use Tool | No |
| Length (Decimal Inch - 4 Decimals) | 0.4134 |
| MSC Part # | 71972715 |
| Mfr Part # | 6860067 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
