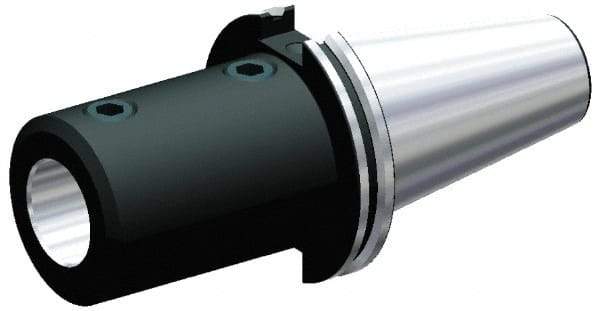

Kennametal - CAT50 Taper, 1-1/2" Inside Hole Diam, 4-1/2" Projection, Straight Shank with Flat Adapter - Through Coolant
Item #: 06494660
Brand: Kennametal
Model #: 1749475
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Straight Shank w/ Flat Adapter |
| Taper Size | CAT50 |
| Inside Hole Diameter (mm) | 38.10 |
| Inside Hole Diameter (Decimal Inch) | 1.5000 |
| Projection (mm) | 114.3 |
| Projection (Decimal Inch) | 4.5000 |
| Nose Diameter (Decimal Inch) | 2.7500 |
| Overall Length (mm) | 215.90 |
| Overall Length (Decimal Inch) | 8.5000 |
| Through Coolant | Yes |
| Drawbar Thread Size | 1-8 |
