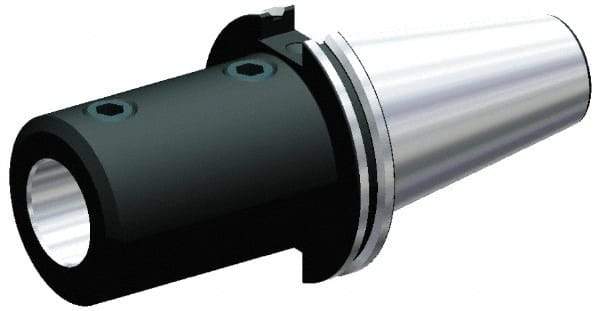

Kennametal - CAT40 Taper, 1-1/4" Inside Hole Diam, 4-3/4" Projection, Straight Shank with Flat Adapter - Through Coolant
Item #: 06494611
Brand: Kennametal
Model #: 1749370
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Straight Shank w/ Flat Adapter |
| Taper Size | CAT40 |
| Inside Hole Diameter (mm) | 31.75 |
| Inside Hole Diameter (Decimal Inch) | 1.2500 |
| Projection (mm) | 120.65 |
| Projection (Decimal Inch) | 4.7500 |
| Nose Diameter (Decimal Inch) | 2.5000 |
| Overall Length (mm) | 188.90 |
| Overall Length (Decimal Inch) | 7.4370 |
| Through Coolant | Yes |
| Drawbar Thread Size | 5/8-11 |
