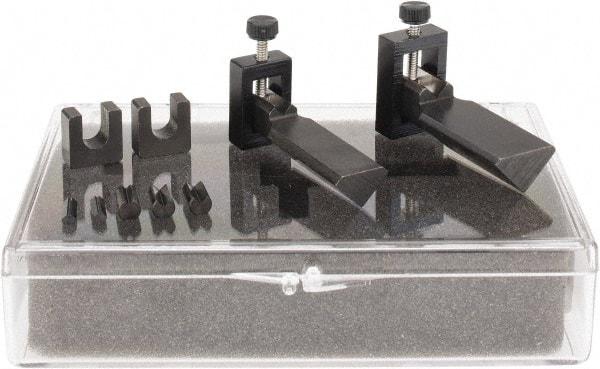

SPI - 0.03 to 9/32" Capacity, 90° Angle, V-Block - Includes 2 Super Wee Blocks, 5 Upper Prisms, Bridges, Fitted Case, Sold as 2 Block Set
Item #: 06493258
Brand: SPI
Exact Tooling IR#: 04
Features and Benefits
V-blocks are used for holding cylindrical components for detecting and inspecting. They are designed with a 90-degree channel rotated 45-degrees from the sides, forming a V-shaped channel in the top. V-Blocks are commonly available in pairs. Some come with magnets for magnetic workholding applications.
| Product Specifications | |
|---|---|
| Type | V-Block |
| Sold As | 2 Block Set |
| V Angle | 90.00 |
| Minimum Capacity of V (Decimal Inch) | 0.0300 |
| Maximum Capacity of V (Inch) | 9/32 |
| Squareness Per 1 Inch (Decimal Inch) | 0.0002 |
| Parallelism (Decimal Inch) | 0.0002 |
| V Parallelism (Decimal Inch) | 0.0002 |
| Magnetic | No |
| Includes | (2) Super Wee Blocks; (5) Upper Prisms; Bridges; Fitted Case |
