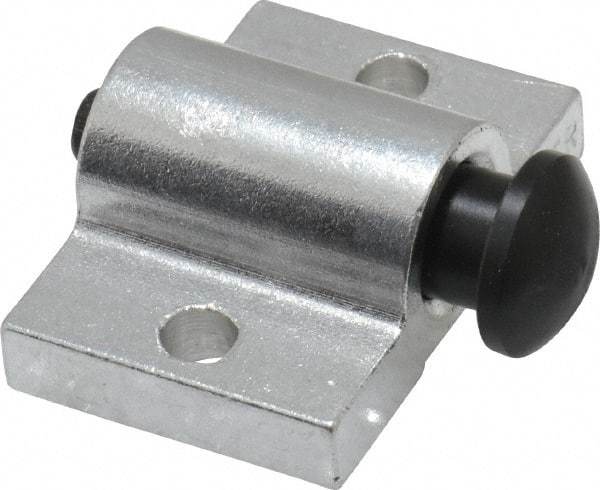

Vlier - 1-1/2" Base Width, 3/16" Stroke Len, 9/16" Stop Head OD, 1-1/8" Btw Mt Hole Ctrs, 7/8" Btw Mt Hole & Edge, Round Spring Locating Stop - 1" Body Len x 1-1/2" Body Width, 5/16" Base Thickness, 2 Lb Init, 14 Lb Mid, 25.9 Lb Final End Force
Item #: 06461982
Brand: Vlier
Model #: NSS90
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Stop Head Outside Diameter (Decimal Inch) | 0.5620 |
| Stroke Length (Decimal Inch) | 0.1880 |
| Stroke Length (Inch) | 3/16 |
| Base Width (Decimal Inch) | 1.5000 |
| Body Length (Inch) | 1 |
| Body Length (Decimal Inch) | 1.0000 |
| Distance Between Mount Hole Centers (Decimal Inch) | 1.1250 |
| Distance Between Mount Hole & Edge (Inch) | 7/8 |
| Distance Between Mount Hole & Edge (Decimal Inch) | 0.8750 |
| Initial End Force (Lb.) | 2.00 |
| Middle End Force (Lb.) | 14.00 |
| Final End Force (Lb.) | 25.90 |
| Body Width (Inch) | 1-1/2 |
| Body Width (Decimal Inch) | 1.5000 |
| Mounting Slot Length (Decimal Inch) | 0.2030 |
| Mounting Slot Width (Decimal Inch) | 0.2030 |
| Base Thickness (Inch) | 5/16 |
| Base Thickness (Decimal Inch) | 0.3125 |
| Body Material | Aluminum |
| Stop Material | Derlin |
