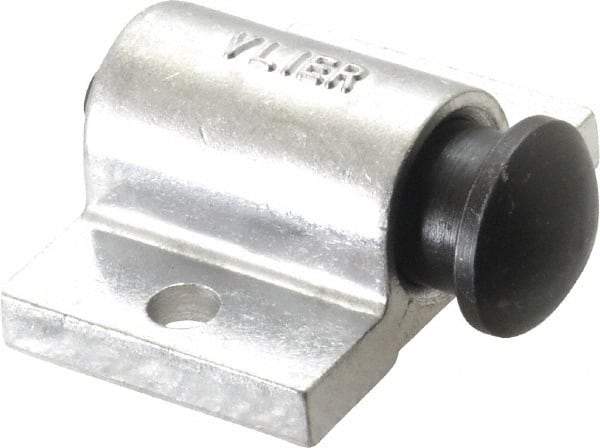

Vlier - 2" Base Width, 1/4" Stroke Len, 13/16" Stop Head OD, 1-1/2" Btw Mt Hole Ctrs, 1-7/32" Btw Mt Hole & Edge, Round Spring Locating Stop - 1-3/8" Body Len x 2" Body Width, 7/16" Base Thickness, 14.4 Lb Init, 32 Lb Mid, 45.4 Lb Final End Force
Item #: 06461958
Brand: Vlier
Model #: SS92
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Stop Head Outside Diameter (Inch) | 13/16 |
| Stop Head Outside Diameter (Decimal Inch) | 0.8125 |
| Stroke Length (Decimal Inch) | 0.2500 |
| Stroke Length (Inch) | 1/4 |
| Base Width (Decimal Inch) | 2.0000 |
| Body Length (Inch) | 1-3/8 |
| Body Length (Decimal Inch) | 1.3750 |
| Distance Between Mount Hole Centers (Decimal Inch) | 1.5000 |
| Distance Between Mount Hole Centers (Inch) | 1-1/2 |
| Distance Between Mount Hole & Edge (Inch) | 1-7/32 |
| Distance Between Mount Hole & Edge (Decimal Inch) | 1.2180 |
| Initial End Force (Lb.) | 14.40 |
| Middle End Force (Lb.) | 32.00 |
| Final End Force (Lb.) | 45.40 |
| Body Width (Inch) | 2 |
| Body Width (Decimal Inch) | 2.0000 |
| Mounting Slot Length (Decimal Inch) | 0.2660 |
| Mounting Slot Width (Inch) | 17/64 |
| Mounting Slot Width (Decimal Inch) | 0.2656 |
| Base Thickness (Inch) | 7/16 |
| Base Thickness (Decimal Inch) | 0.4375 |
| Body Material | Aluminum |
| Stop Material | Steel |
