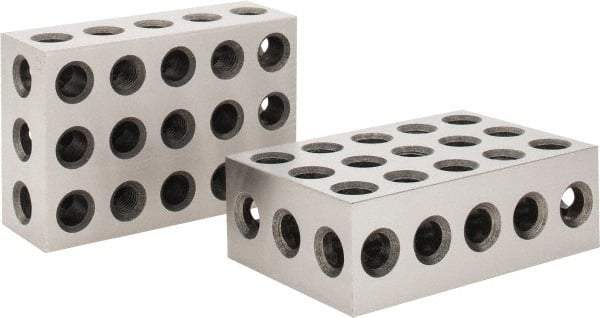

Value Collection - 0.0003 Squareness Per Inch, Hardened Steel, 2-4-6 Block with 23 Hole Setup Block - 0.0001 to 0.0007 Inch Overall Tolerance, 5/8-11 Inch Tapped Hole Size, 56-60 HRC Hardness, Sold As Matched Pair
Item #: 06378061
Brand: Value Collection
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | 2-4-6 Block |
| Overall Width (Inch) | 2 |
| Overall Length (Inch) | 4 |
| Overall Height (Inch) | 6 |
| Squareness Per 1 Inch (Decimal Inch) | 0.0003 |
| Sold As | Matched Pair |
| Number of Tapped Holes | 5 |
| Number of Untapped Holes | 18 |
| Tapped Hole Size (Inch) | 5/8-11 |
| Hardness | 56-60 HRC |
| Material | Hardened Steel |
| Additional Information | Layout Work; Precision Grounding |
| Overall Tolerance (Decimal Inch) | 0.0001 to 0.0007 |
