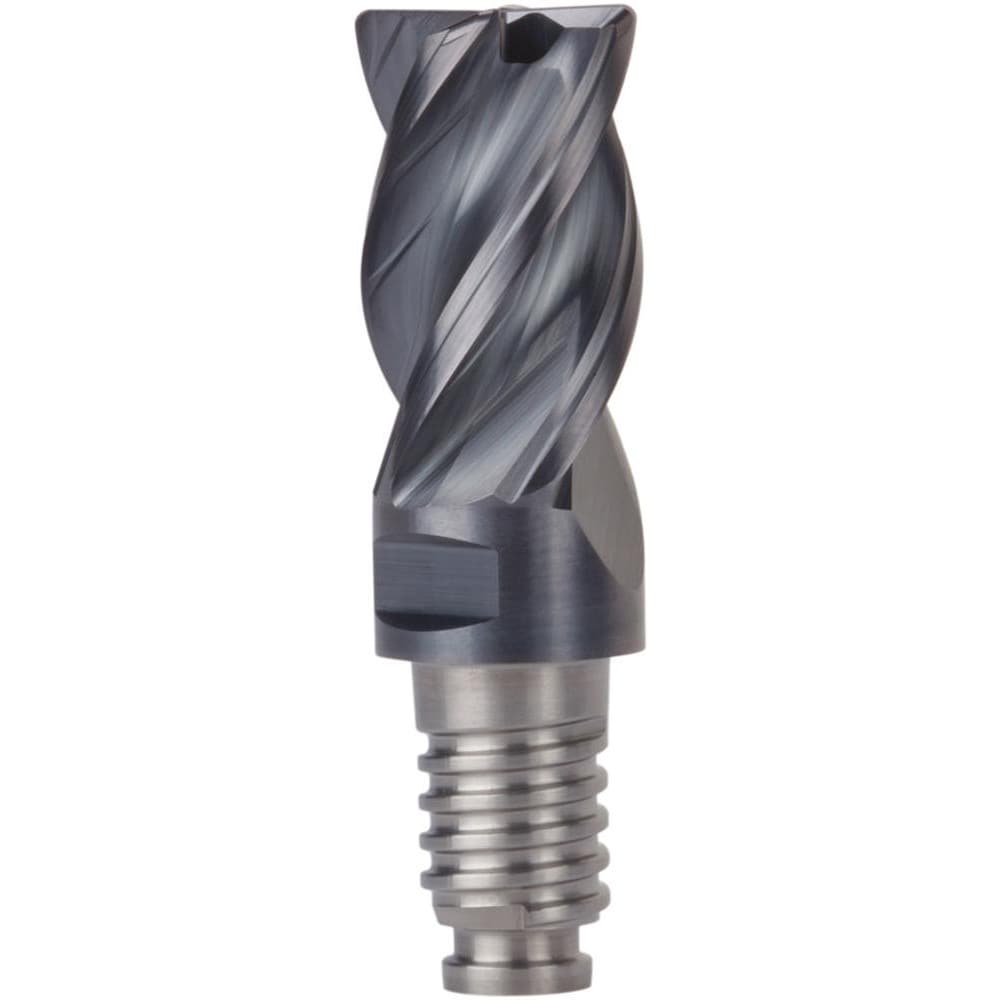

Corner Radius & Corner Chamfer End Mill Heads; Mill Diameter (mm): 25.40; Mill Diameter (Inch): 1; Chamfer Width (mm): 0.510; Chamfer Angle: 45.000; Length of Cut (Inch): 1-1/2; Length of Cut (mm): 38.1000; Number Of Flutes: 4
Item #: 84770445
Brand: Kennametal
Model #: 7136466
Product Specifications
| Mill Diameter (mm) | 25.40 |
| Mill Diameter (Inch) | 1 |
| Chamfer Width (mm) | 0.510 |
| Chamfer Angle | 45.000 |
| Length of Cut (Inch) | 1-1/2 |
| Length of Cut (mm) | 38.1000 |
| Number Of Flutes | 4 |
| Overall Length (mm) | 88.6000 |
| End Mill Material | Solid Carbide |
| Overall Length (Decimal Inch) | 3.4882 |
| Mill Diameter (Decimal Inch) | 1.0000 |
| Centercutting | Yes |
| Connection Type | Duo-Lock 25 |
| Flute Type | Variable; Helical |
| Maximum Helix Angle | 40 |
| Material Grade | KCPM15 |
| Series | Duo-Lock Harvi I TE |
| Helix Angle | 36 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.5000 |
| UNSPSC Code | 27112803 |
| Country of Origin | Israel |
