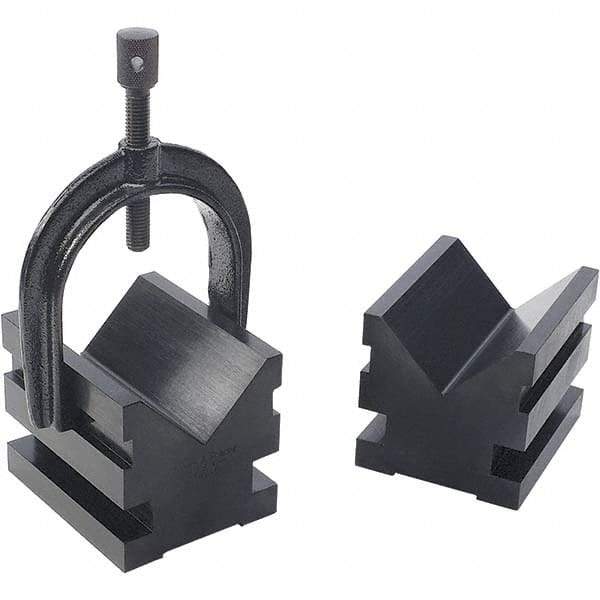

TESA Brown & Sharpe - 12.7 to 2-1/2" Capacity, 90° Angle, Mild Steel V-Block - 3" Long x 2-1/2" Wide x 2-1/2" High, Sold as 2 Block Set
Item #: 06226880
Brand: TESA Brown & Sharpe
Model #: 599-749-1
Exact Tooling IR#: 04
Features and Benefits
V-blocks are used for holding cylindrical components for detecting and inspecting. They are designed with a 90-degree channel rotated 45-degrees from the sides, forming a V-shaped channel in the top. V-Blocks are commonly available in pairs. Some come with magnets for magnetic workholding applications.
| Product Specifications | |
|---|---|
| Type | V-Block |
| Sold As | 2 Block Set |
| Overall Length (mm) | 76.20 |
| Overall Length (Inch) | 3 |
| Overall Width (mm) | 63.50 |
| Overall Width (Inch) | 2-1/2 |
| Overall Height (mm) | 63.50 |
| Overall Height (Inch) | 2-1/2 |
| V Angle | 90.00 |
| Minimum Capacity of V (mm) | 12.70 |
| Minimum Capacity of V (Inch) | 1/2 |
| Maximum Capacity of V (mm) | 63.50 |
| Maximum Capacity of V (Inch) | 2-1/2 |
| Material | Mild Steel |
| Squareness Per 1 Inch (Decimal Inch) | 0.0030 |
| V Parallelism (Decimal Inch) | 0.0020 |
| Magnetic | No |
| Includes | Clamp |
