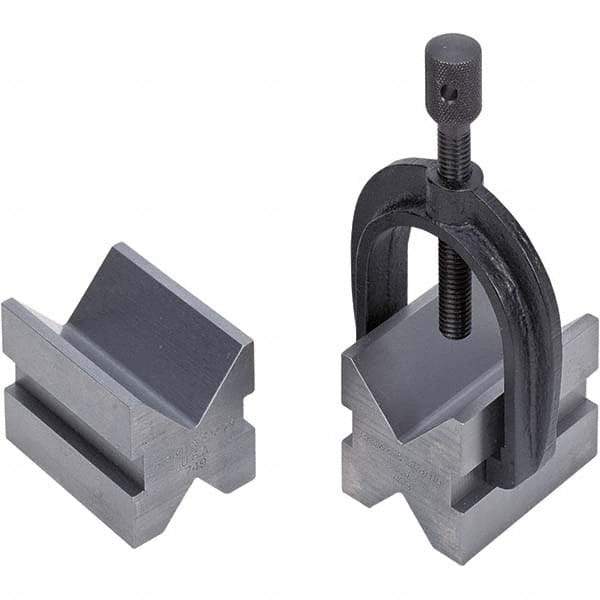

TESA Brown & Sharpe - 1-1/2" Max Capacity, 90° Angle, Mild Steel V-Block - 2" Long x 1-1/2" Wide x 1-1/2" High, Sold as 2 Block Set
Item #: 06226864
Brand: TESA Brown & Sharpe
Model #: 599-749
Exact Tooling IR#: 04
Features and Benefits
V-blocks are used for holding cylindrical components for detecting and inspecting. They are designed with a 90-degree channel rotated 45-degrees from the sides, forming a V-shaped channel in the top. V-Blocks are commonly available in pairs. Some come with magnets for magnetic workholding applications.
| Product Specifications | |
|---|---|
| Type | V-Block |
| Sold As | 2 Block Set |
| Overall Length (mm) | 50.80 |
| Overall Length (Inch) | 2 |
| Overall Width (mm) | 38.10 |
| Overall Width (Inch) | 1-1/2 |
| Overall Height (mm) | 38.10 |
| Overall Height (Inch) | 1-1/2 |
| V Angle | 90.00 |
| Maximum Capacity of V (mm) | 38.10 |
| Maximum Capacity of V (Inch) | 1-1/2 |
| Material | Mild Steel |
| Squareness Per 1 Inch (Decimal Inch) | 0.0020 |
| Parallelism (Decimal Inch) | 0.0002 |
| V Parallelism (Decimal Inch) | 0.0035 |
| Magnetic | No |
| Includes | Clamp |
