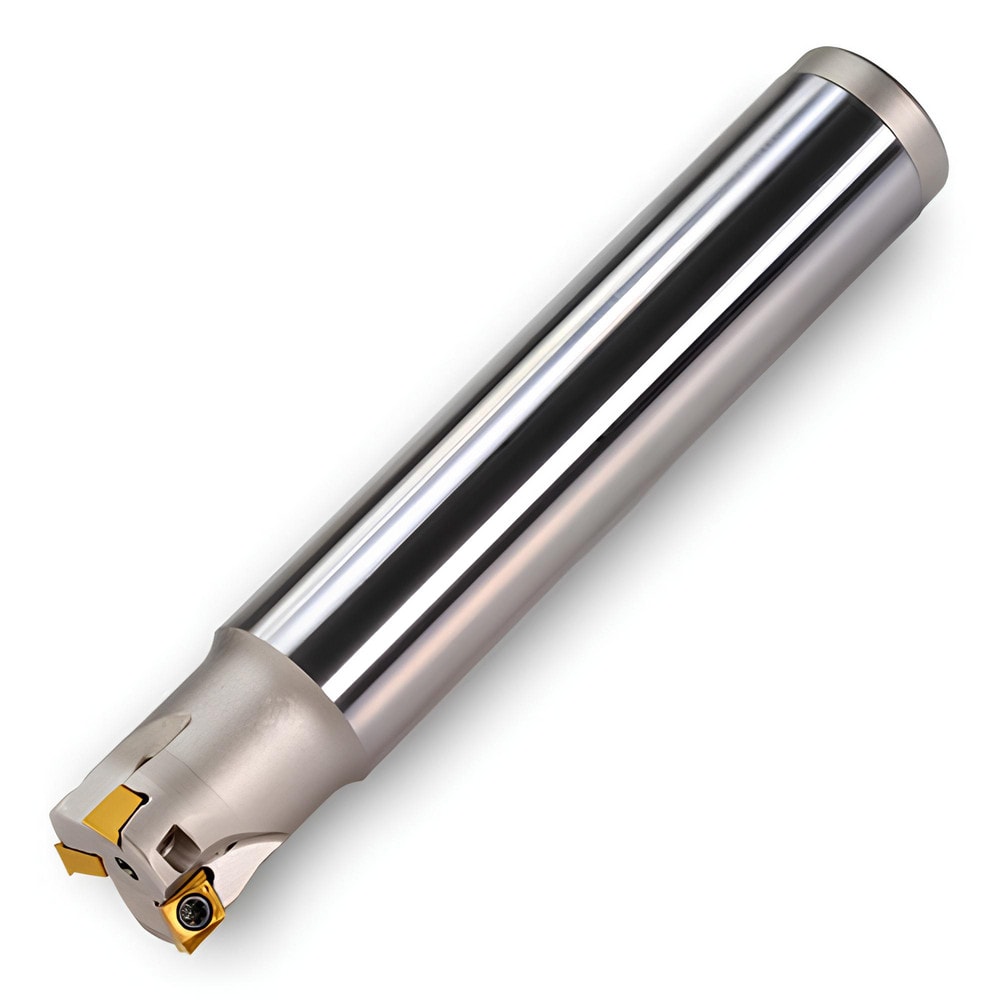

Indexable Square-Shoulder End Mill: 1TJ1B-06008S6R01, 9/64" Max Depth of Cut, 5/8" Dia Cylindrical Shank
Item #: 96744941
Brand: Ingersoll Cutting Tools
Model #: 2925850
Product Specifications
| Overall Length (Decimal Inch) | 4.0000 |
| Overall Length (mm) | 101.60 |
| Overall Length (Inch) | 4 |
| Maximum Depth of Cut (Decimal Inch) | 0.1400 |
| Maximum Depth of Cut (Inch) | 9/64 |
| Cutter Style | 1TJ1B |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 5/8 |
| Insert Holding Method | Screw |
| Maximum Ramping Angle | 0 |
| Tool Material | Steel |
| Series | 1TJ1B |
| Flute Type | Helical |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 3.1900 |
| Shank Length (mm) | 81.03 |
| Head Length (Decimal Inch) | 0.81 |
| Head Length (mm) | 20.57 |
| Tool Application | Facing; Pocketing; Shouldering; Ramping |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Rake | Negative |
| Complete Insert Compatibility | UNHU0402..; MNHU0402.. |
| Insert Compatibility | UNHU0402..; MNHU0402.. |
| Hand of Holder | Right Hand |
| Multi-Use Tool | Yes |
| UNSPSC Code | 27112803 |
| Manufacturers Catalog Number | 1TJ1B-06008S6R01 |
| Usable Length (mm) | 20.57 |
| Number Of Flutes | 4 |
| Usable Length (Decimal Inch) | 0.8100 |
| Number Of Cutter Inserts | 4 |
| Coolant Through | Yes |
