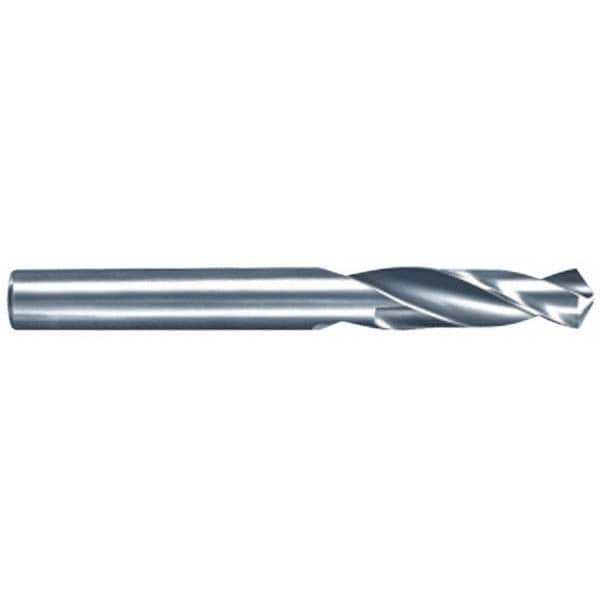

Screw Machine Length Drill Bit: 1/16" Dia, 118 deg Point, Solid Carbide
Item #: 06825889
Brand: Guhring
Model #: 9007300016000
Product Specifications
| Drill Bit Size (Inch) | 1/16 |
| Drill Bit Size (Decimal Inch) | 0.0625 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Bright/Uncoated |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 118 |
| Coolant Through | No |
| Primary Workpiece Material | Aluminum & Non-Ferrous |
| Point Type | 4 Facet |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.0630 |
| Overall Length (mm) | 34.00 |
| Overall Length (Decimal Inch) | 1.3386 |
| Shank Diameter (mm) | 1.60 |
| Series | 730 |
| Web Thinning | Web-Thinned |
| Drill Length Type | Stub |
| Maximum Drilling Depth (Decimal Inch) | 0.2990 |
| Maximum Drilling Depth (mm) | 7.60 |
| Shank Length (Decimal Inch) | 0.9449 |
| Shank Length (mm) | 24.00 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | General Purpose |
| Drill Bit Diameter Tolerance | h7 |
| Standards | DIN 6539 |
| Flute Length (mm) | 10.00 |
| Drill Bit Size Range (Decimal Inch) | 0.0000 to 0.1000 |
| UNSPSC Code | 23241635 |
