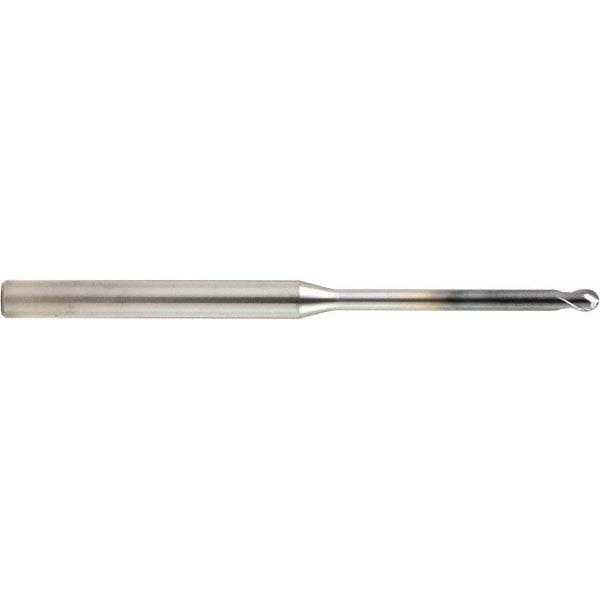

Brand: OSG / Part #: 3049968
Item #: 55441398
Brand: OSG
Model #: 3049968
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0236 |
| Mill Diameter (mm) | 0.60 |
| Length of Cut (mm) | 0.50 |
| End Mill Material | Solid Carbide |
| Coating/Finish | WXS |
| Number Of Flutes | 2 |
| Extended Reach | Yes |
| Helix Angle | 30 |
| Variable Index | No |
| Length Of Cut Range (Decimal Inch) | 0.0000 to 0.0500 |
| Variable Helix | No |
| Length Type | Stub |
| Shank Diameter (mm) | 4.00 |
| Neck Diameter (Decimal Inch) | 0.5500 |
| Neck Diameter (mm) | 0.55 |
| Overall Length (mm) | 45.00 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | 4590 |
| Flute Type | Spiral |
| Single Or Double End | Single |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0197 |
