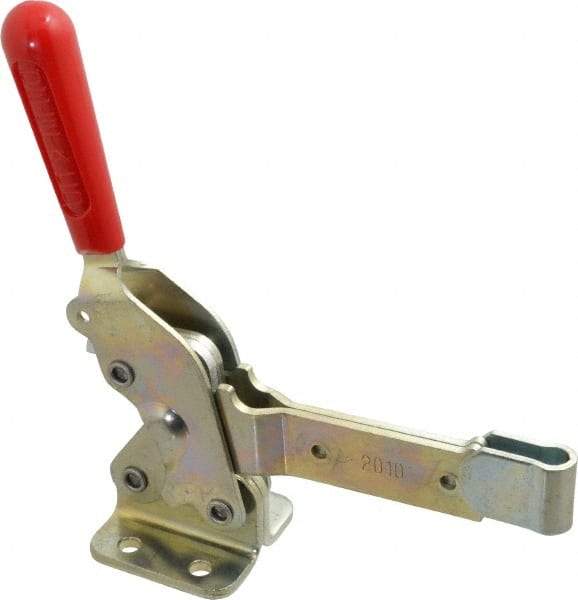

De-Sta-Co - 1,400 Lb Holding Capacity, Vertical Handle, Manual Hold Down Toggle Clamp - 66° Handle Movement, 78° Bar Opening, Solid Bar, Flanged Base, Electro-Plated Zinc, Carbon Steel
Item #: 05572326
Brand: De-Sta-Co
Model #: 2010-S
Exact Tooling IR#: 04
Features and Benefits
Vertical handles are designed with a handle that is 90 degrees, or perpendicular to the clamping bar. They are manufactured with holding capacities of up to 6,000 pounds.
Solid Bars are designed to retain a spindle that is fixed to a specific position on the bar. The spindle retainers are commonly welded to the bar of the clamp at a customer specified position. Generally, the solid bar models have greater holding capacity than the equivalent U-bar model.
Carbon steel offers strength and rigidity during an application. It does not resist corrosion as well as stainless steel.
| Product Specifications | |
|---|---|
| Handle Orientation | Vertical |
| Bar Style | Solid |
| Base Style | Flanged |
| Bar End Type | Closed |
| Holding Capacity (N) | 6230.00 |
| Holding Capacity (Lb.) | 1400.00 |
| Length Distance Between Mount Holes (mm) | 31.75 |
| Length Distance Between Mount Holes (Decimal Inch) | 1.25 |
| Width Distance Between Mount Holes (mm) | 45.21 |
| Width Distance Between Mount Holes (Decimal Inch) | 1.7800 |
| Height Under Bar (mm) | 43.18 |
| Height Under Bar (Decimal Inch) | 1.7000 |
| Overall Length (mm) | 200.66 |
| Overall Length (Decimal Inch) | 7.5100 |
| Overall Height (mm) | 230.63 |
| Overall Height (Decimal Inch) | 9.0800 |
| Base Length (mm) | 64.26 |
| Base Length (Decimal Inch) | 2.5300 |
| Base Width (mm) | 66.55 |
| Base Width (Decimal Inch) | 2.6200 |
| Handle Style | Straight |
| Material | Carbon Steel |
| Handle Color | Red |
| Finish/Coating | Electro-Plated Zinc |
| Number of Mounting Holes | 4 |
| Mounting Hole Diameter (mm) | 8.64 |
| Mounting Hole Diameter (Decimal Inch) | 0.3400 |
| Front of Base To Tip Of Toggle Bar (mm) | 90.17 |
| Front of Base To Tip Of Toggle Bar (Decimal Inch) | 3.5500 |
| Bar Opening (Degrees) | 78.00 |
| Handle Movement (Degrees) | 66.00 |
| Maximum Mechanical Advantage | 6:1; 13:1 |
| Spindle Thread Size | M10x1.5 |
| Spindle Length (mm) | 90.00 |
| Bar Width (Decimal Inch) | 1.1300 |
| Bar Width (mm) | 28.70 |
| Bar Thickness (mm) | 8.30 |
| Bar Thickness (Decimal Inch) | 0.3268 |
| Includes | Bolt Retainer |
