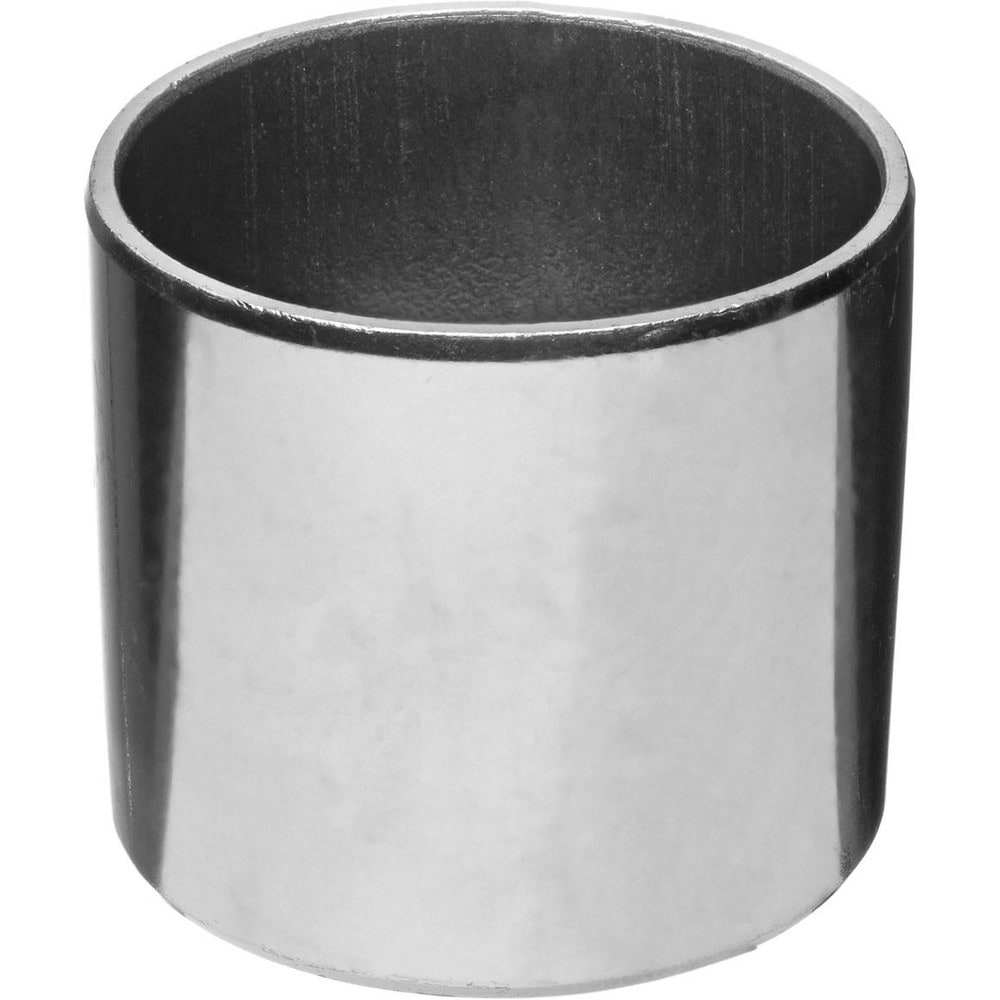

Sleeve Bearings; Bearing Type: Sleeve; Outside Diameter (Inch): 21/32; Outside Diameter (Decimal Inch - 4 Decimals): 0.6563; Inside Diameter (Inch): 9/16; Inside Diameter (Decimal Inch): 0.5625
Item #: 76816578
Brand: USA Industrials
Model #: ZUSAB-PB-878
Product Specifications
| Bearing Type | Sleeve |
| Outside Diameter (Inch) | 21/32 |
| Outside Diameter (Decimal Inch - 4 Decimals) | 0.6563 |
| Inside Diameter (Inch) | 9/16 |
| Inside Diameter (Decimal Inch) | 0.5625 |
| Material | Steel |
| Overall Length (Inch) | 5/8 |
| Overall Length (Decimal Inch) | 0.6250 |
| Static Load Capacity | 71257.58 |
| Dynamic Load Capacity | 2923960.790 |
| Maximum Pressure X Velocity | 406 |
| Bore Type | Plain |
| Lubricant Type | PTFE |
| Temperature Range | -320 to 530 Deg F |
| Housing Bore Limits Maximum | 0.6570 |
| Housing Bore Limits Mininum | 0.6560 |
| Inside Diameter (mm) | 14.2900 |
| Overall Length (mm) | 15.88 |
| UNSPSC Code | 31171509 |
| Country of Origin | United Kingdom |
