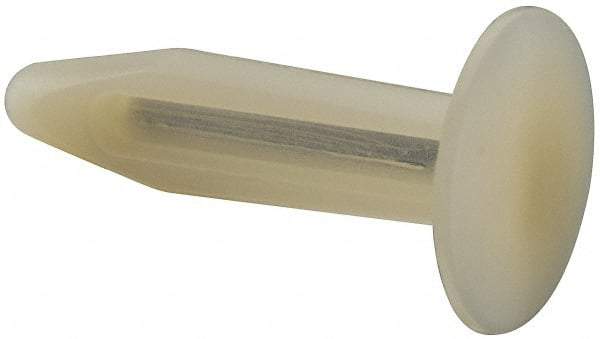

Made in USA - 1/4" to 0.26" Hole Diam, 1.203" OAL, Arrow Shank, Nylon Panel Rivet - 1.135" Length Under Head, 1/2" to 3/4" Material Thickness, 0.61" Head Diam
Item #: 05173935
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Panel rivets are inserted into punched or predrilled holes in thin materials. They are push-in fasteners that resist shaking, vibration, loosening and abrasion.
Arrow shanks are compressed into holes and snap into place on the other side for a secure hold.
| Product Specifications | |
|---|---|
| Type | Panel Rivet |
| Shank Type | Arrow |
| Minimum Hole Diameter (Decimal Inch) | 0.2500 |
| Maximum Hole Diameter (Decimal Inch) | 0.2600 |
| Minimum Material Thickness (Decimal Inch) | 0.5000 |
| Maximum Material Thickness (Decimal Inch) | 0.7500 |
| Head Diameter (Decimal Inch) | 0.6100 |
| Head Height (Decimal Inch) | 0.0680 |
| Length Under Head (Decimal Inch) | 1.1350 |
| Overall Length (Decimal Inch) | 1.2030 |
| Body Diameter (Decimal Inch) | 0.2870 |
| Material | Nylon |
