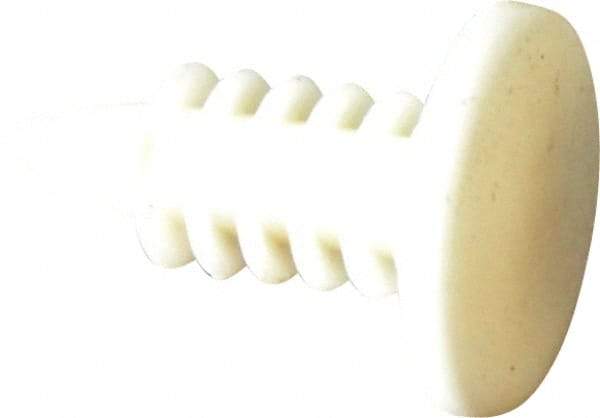

Made in USA - 3/16" Hole Diam, Ratchet Shank, Nylon Panel Rivet - 9/16" Length Under Head, 0.33" Material Thickness, 0.435" Head Diam
Item #: 05169693
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Panel rivets are inserted into punched or predrilled holes in thin materials. They are push-in fasteners that resist shaking, vibration, loosening and abrasion.
Ratchet shanks feature two shanks that mate to create a secure connection. They are ideal for applications that require a rivet head on both sides of the workpiece.
| Product Specifications | |
|---|---|
| Type | Panel Rivet |
| Shank Type | Ratchet |
| Minimum Hole Diameter (Decimal Inch) | 0.1870 |
| Maximum Hole Diameter (Decimal Inch) | 0.1870 |
| Maximum Material Thickness (Decimal Inch) | 0.3300 |
| Head Diameter (Decimal Inch) | 0.4350 |
| Head Height (Decimal Inch) | 0.0680 |
| Length Under Head (Decimal Inch) | 0.5620 |
| Color | White |
| Material | Nylon |
